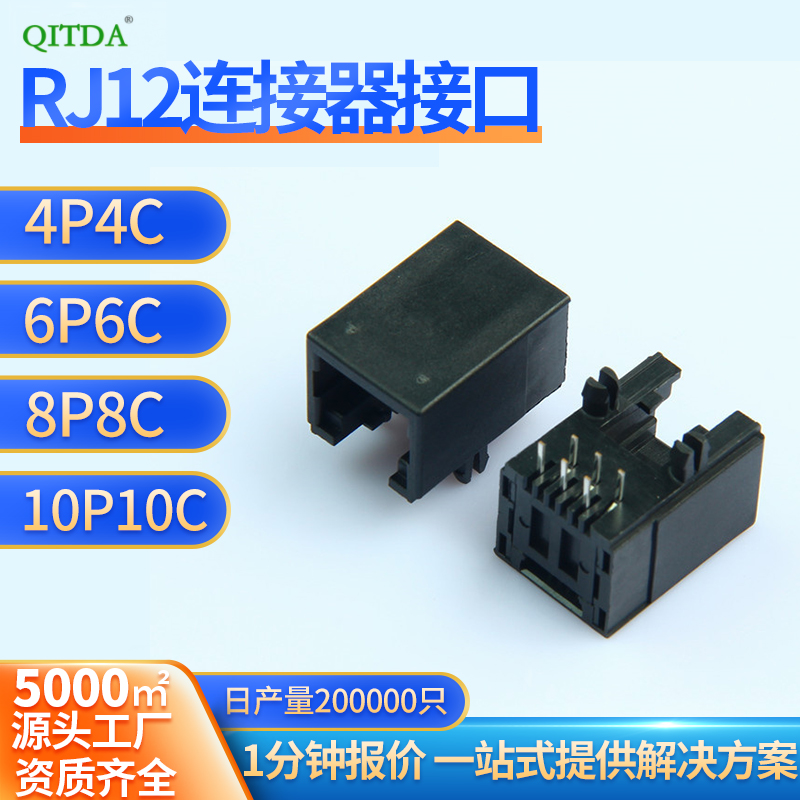

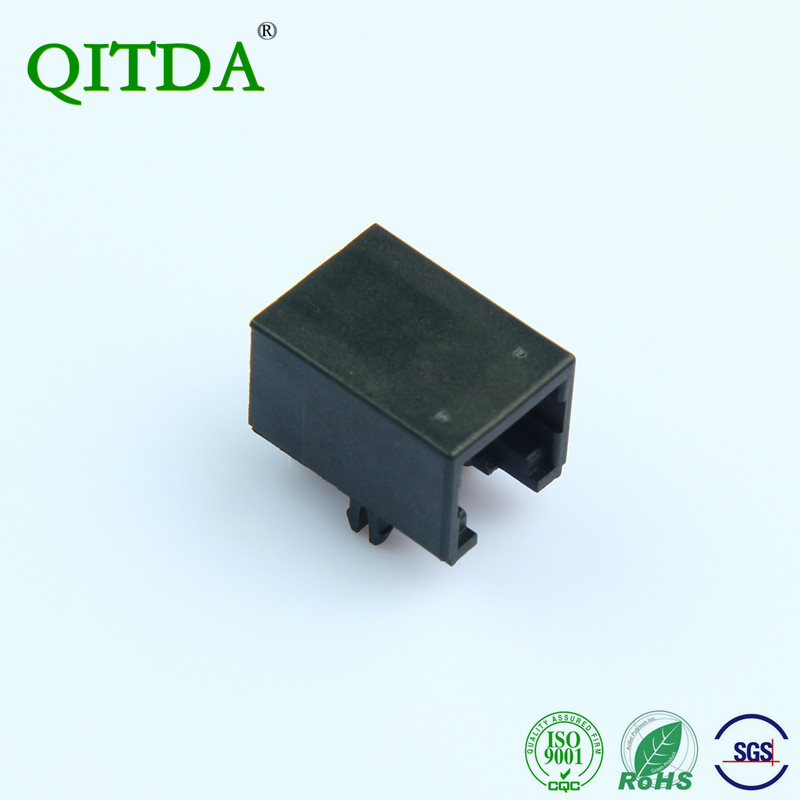

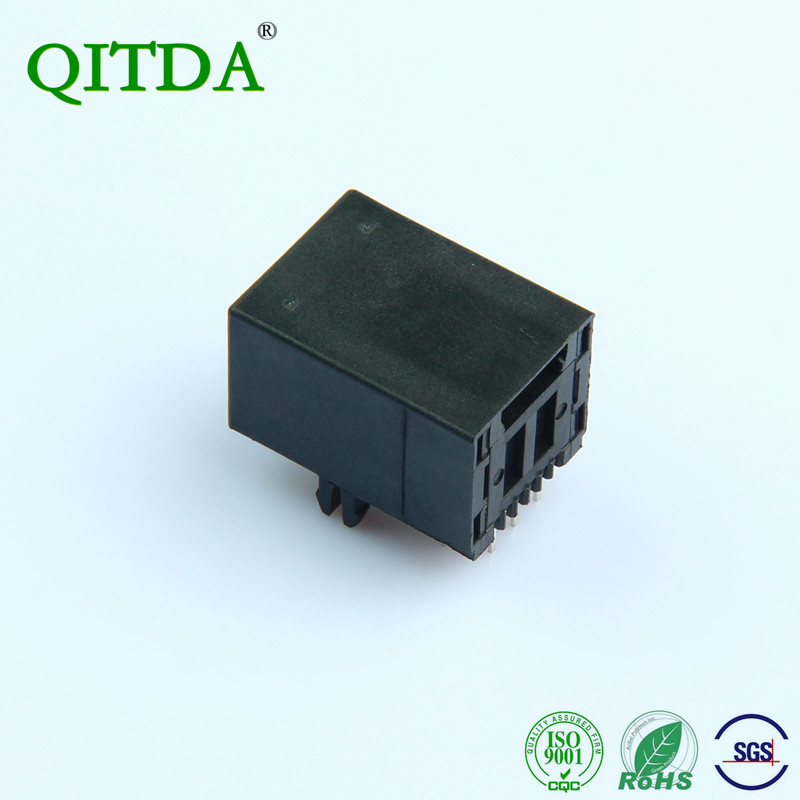

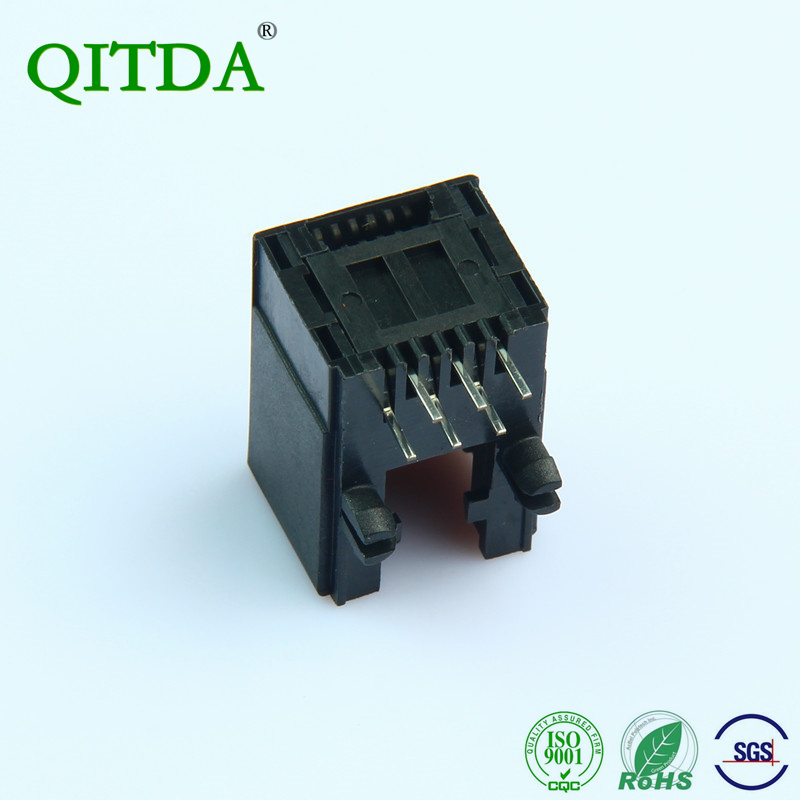

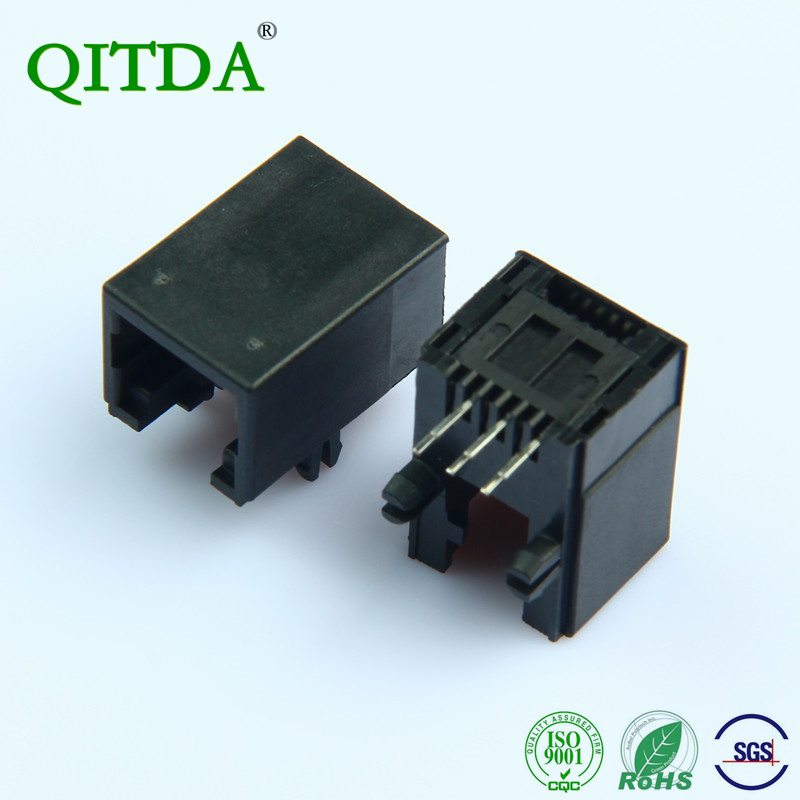

RJ11 connector R12 interface female socket H11.5 thin 6P6C DIP

RJ11 connector R12 interface female socket H11.5 thin 6P6C DIP

Feature

深圳市祺泰达电子有限公司10年+经验主营TYPEC连接器,ri45连接器,USB连接器接口,SATA连接器,HDMI连接器,欢迎致电咨询
  • RJ11 connector R12 interface female socket H11.5 thin 6P6C DIP
  • RJ11 connector R12 interface female socket H11.5 thin 6P6C DIP
  • RJ11 connector R12 interface female socket H11.5 thin 6P6C DIP
  • RJ11 connector R12 interface female socket H11.5 thin 6P6C DIP
  • RJ11 connector R12 interface female socket H11.5 thin 6P6C DIP

Details

RJ45 connector product description:

I. RJ45 connector product attributes:

1. Rated current: 1.5A
2. Rated voltage: 30V
3. Durability: Minimum 750 cycles
4. Contact resistance: Maximum 50MΩ initially; maximum 400MΩ
5. Insulation resistance: Minimum 500MΩ
6. Operating temperature: -40°C to +70°C

II. RJ45 jack product materials:

1. Insulator: PBT/LCP UL94V-0
2. Terminal: Brass/phosphor bronze/high-conductivity copper, nickel base, gold-plated contact points 1U/3U/15U
3. Housing: Stainless steel/full area nickel-plated 40U minimum

III. Applicable for the production and inspection of Qida connector series products:

1. Finished product exterior surface should be flat and smooth, free from damage, cracks, or dents, and metal parts should be free from rust.
2. The finished product's dimensions should comply with the specifications in the attached drawings.

IV. Materials used must meet ROHS requirements, contact sales personnel directly if a report is needed.

V. Note: For product specifications, parameters, lifespan, operating temperature, feel, waterproof rating, etc.,



只代表祺泰达内部的测试结果,如需更详细测试方式,请联系我司相关人员
