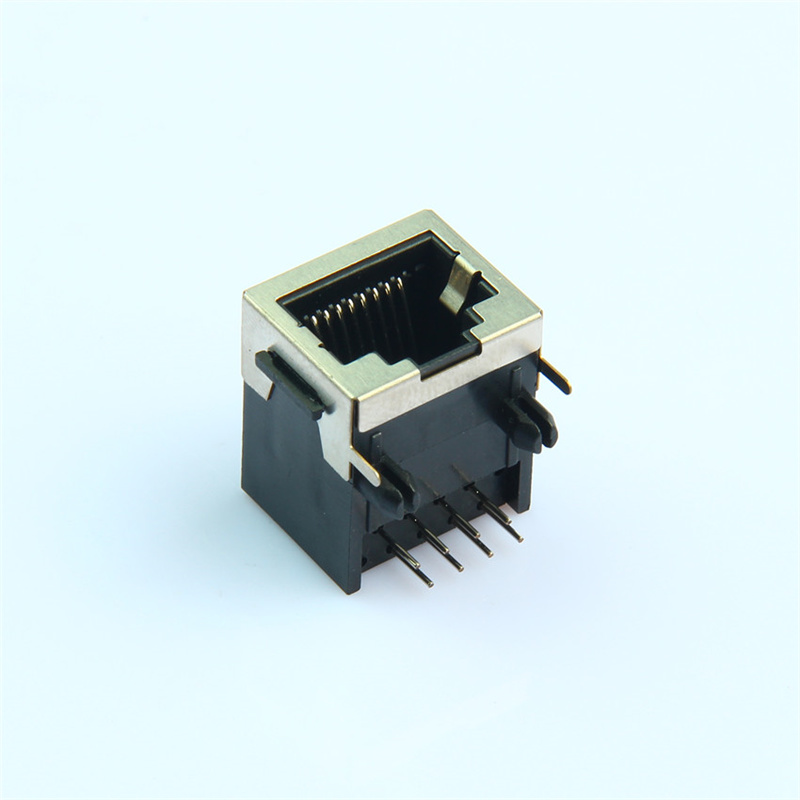

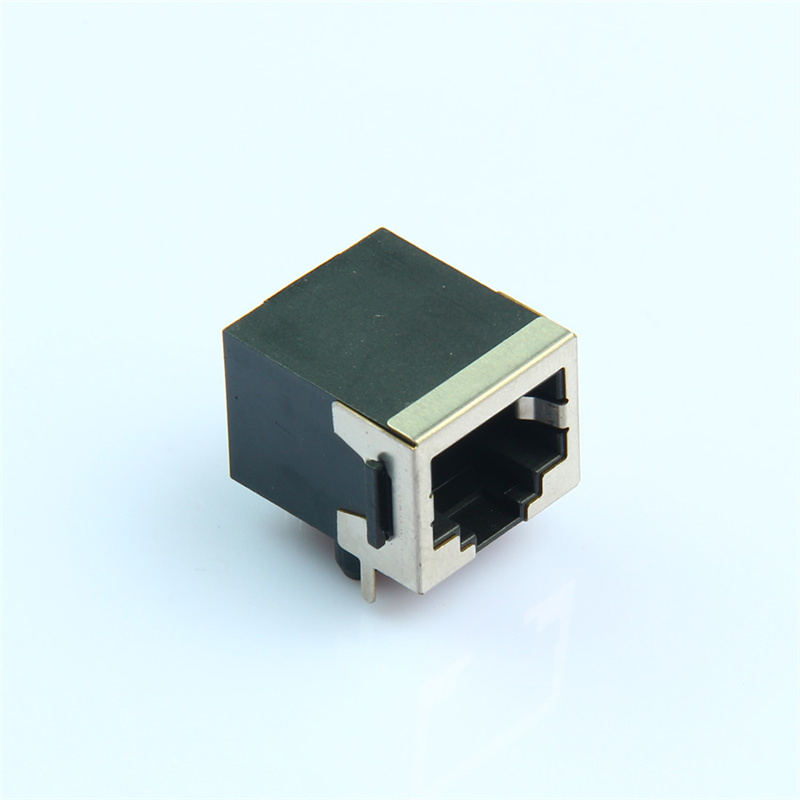

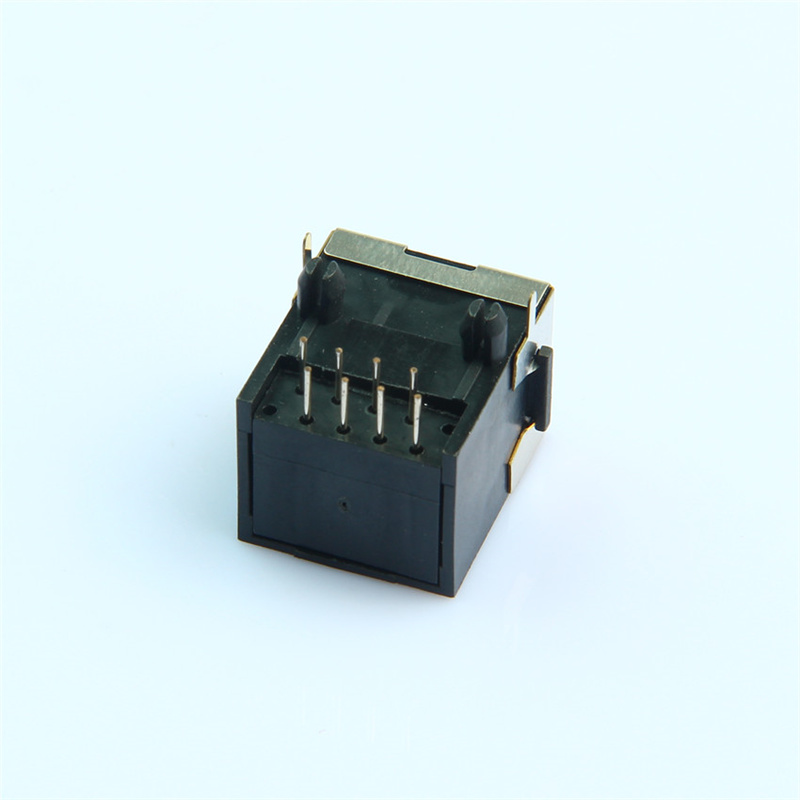

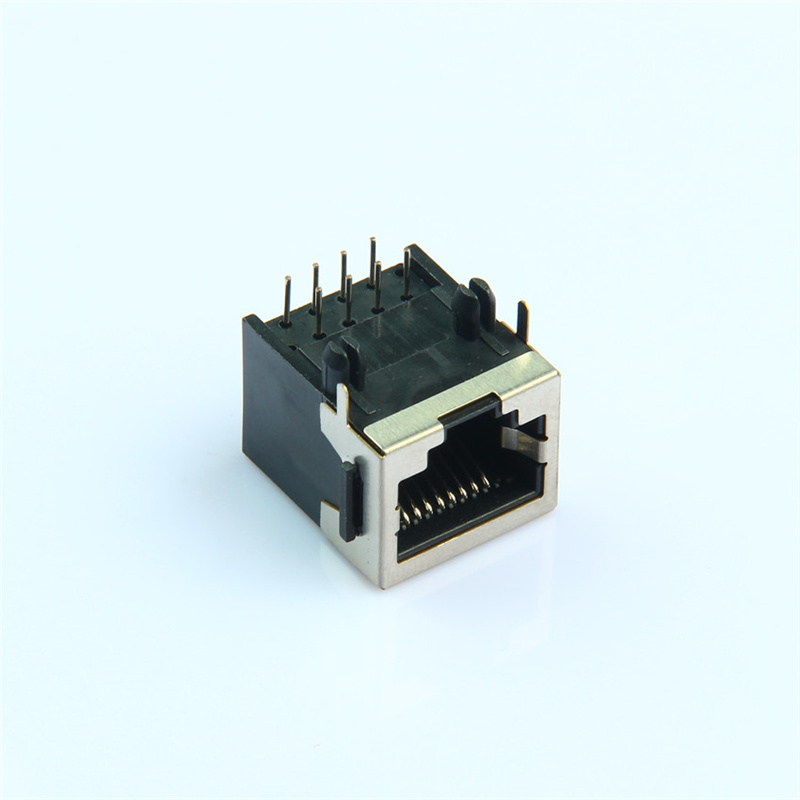

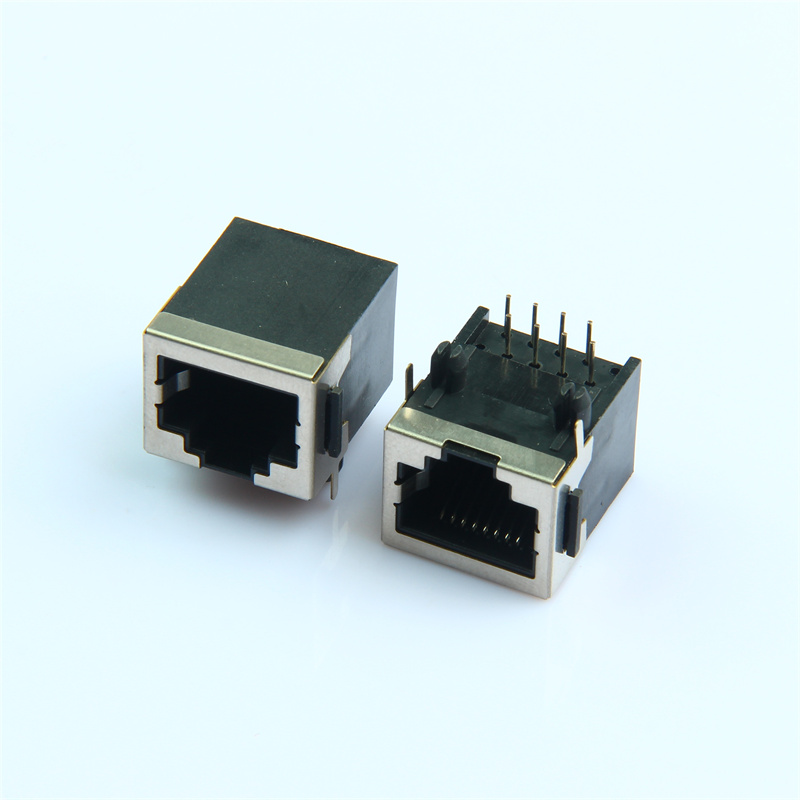

RJ45 horizontal connector, network interface, 8P8C socket, no indicator lights, half-shielded

RJ45 Connector Product Description:

I. RJ45 Connector Product Attributes:

1. Rated Current: 1.5A
2. Rated Voltage: 30V
3. Durability: Minimum 750 Cycles
4. Contact Impedance: Maximum 50MΩ initially; Maximum 400MΩ
5. Insulation Resistance: Minimum 500MΩ
6. Operating Temperature: -40°C to +70°C

II. RJ45 Jack Housing Material:

1. Insulator Core: PBT/LCP UL94V-0
2. Terminal: Brass/Phosphor Bronze/Highbond Copper, nickel base, gold-plated contact points 1U/3U/15U
3. Housing: Stainless Steel/Full Nickel Plating 40U Minimum

III. Applicable for Production and Inspection of Qidaoda Connectors:

1. Finished product surface should be flat and smooth, free from damage, cracks, or dents, with metal parts free from rust.
2. The finished product's dimensions must comply with the attached drawings.

IV. Materials used must meet ROHS requirements. For reports, please contact our sales personnel directly.

V. Note: Specifications, parameters, lifespan, operating temperature, feel, waterproof rating, and other data only represent internal test results from Qidaoda. For more detailed testing methods, please contact our relevant staff.
