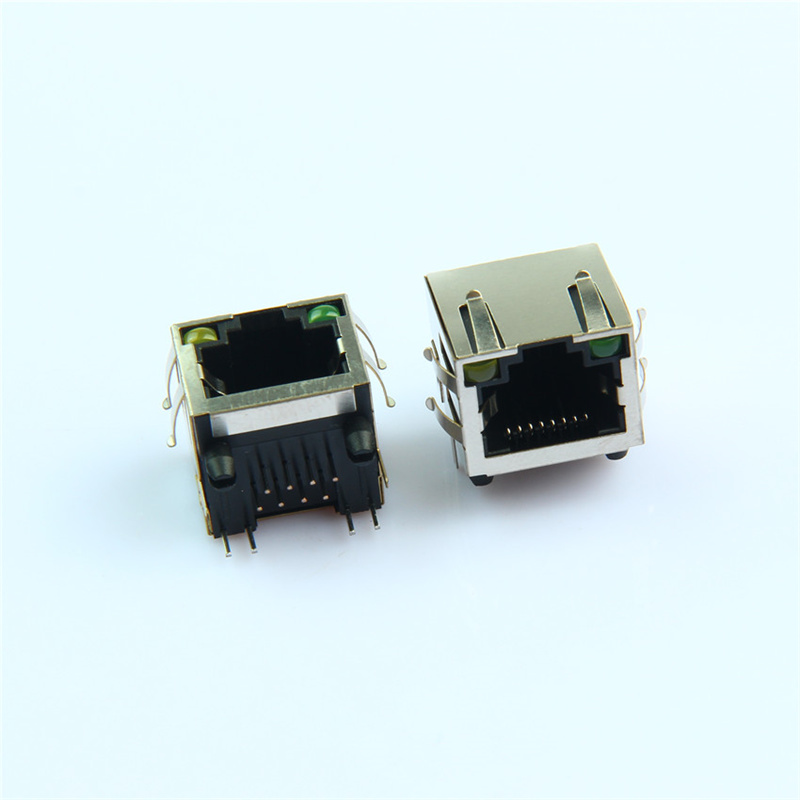

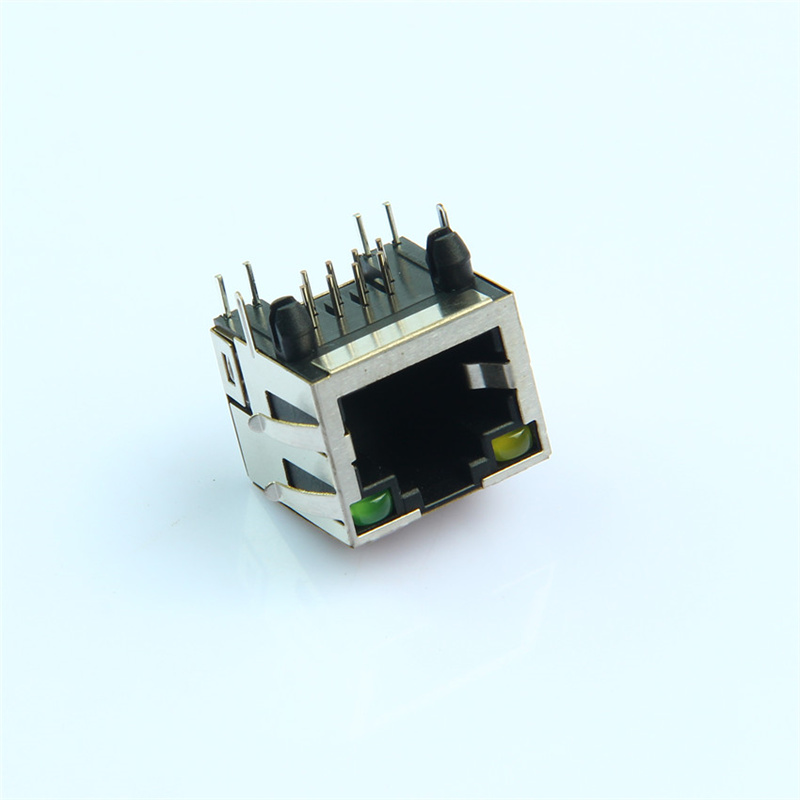

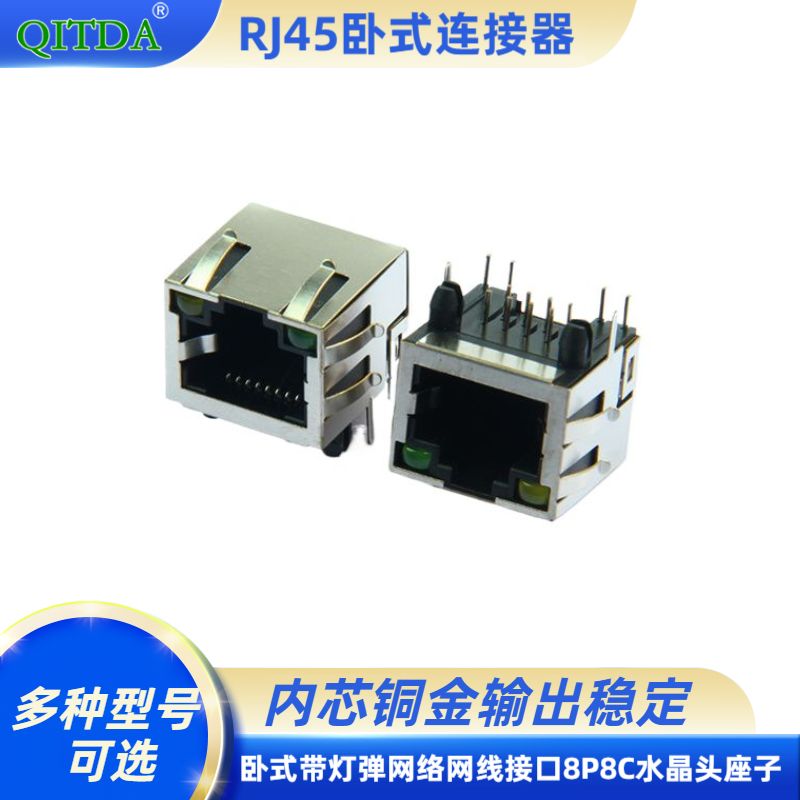

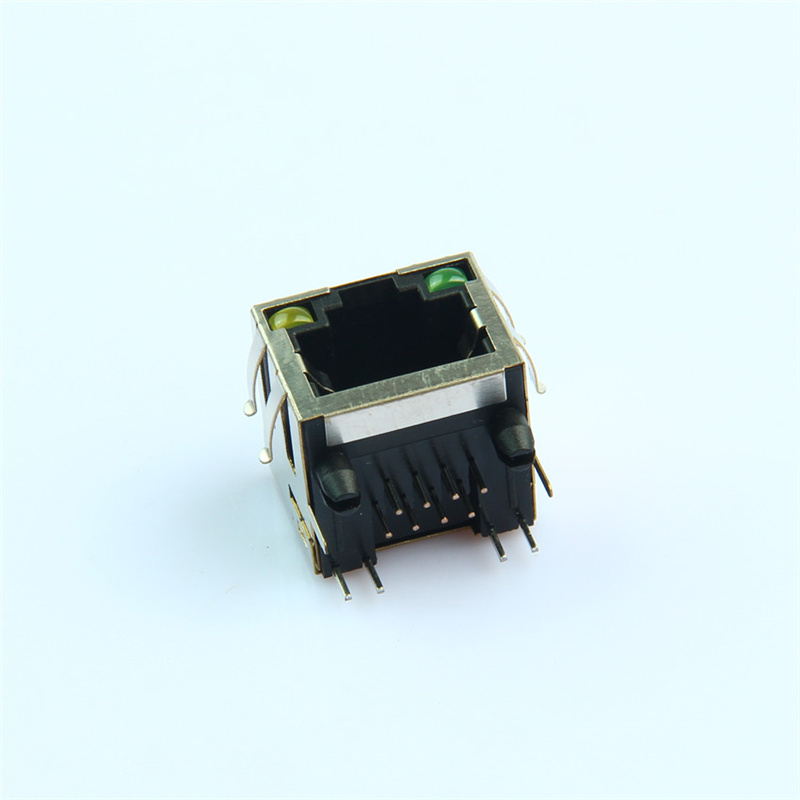

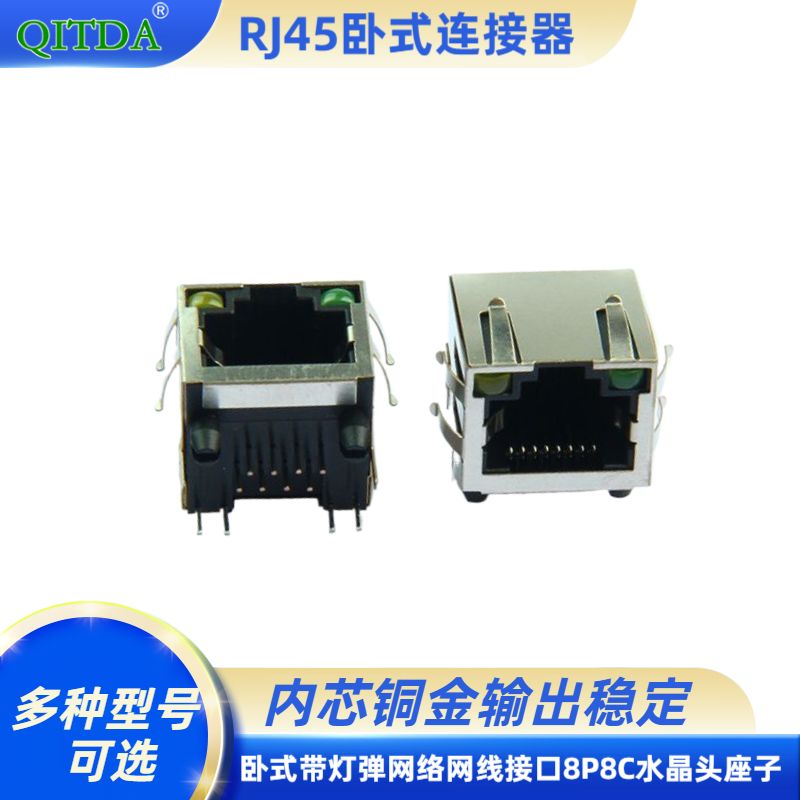

RJ45 horizontal connector, network cable interface, 8P8C shielded with indicator light

RJ45 Connector Product Description:

I. RJ45 Connector Product Attributes:

1. Rated Current: 1.5A
2. Rated Voltage: 30V
3. Durability: Minimum 750 Cycles
4. Contact Impedance: Maximum 50MΩ initially; Maximum 400MΩ
5. Insulation Resistance: Minimum 500MΩ
6. Operating Temperature: -40°C to +70°C

II. RJ45 Jack Housing Material:

1. Insulator Core: PBT/LCP UL94V-0
2. Terminal: Brass/Phosphor Bronze/High Conductivity Copper, Nickel Plated, Gold Plated Contact Points 1U/3U/15U
3. Housing: Stainless Steel/Full Nickel Plating 40U Minimum

III. Applicable for the Production and Inspection of Qidaoda Connectors:

1. Finished product surface should be flat and smooth, free from damage, cracks, or dents, and metal parts should be free from rust.
2. The dimensions of the finished product should comply with the specifications in the attached drawings.

IV. Materials used must meet ROHS requirements. For reports, please contact the salesperson directly.

V. Note: Data on product specifications, parameters, lifespan, operating temperature, feel, waterproof rating, etc., only represent internal test results from Qidaoda. For more detailed testing methods, please contact our company's relevant personnel.

只代表祺泰达内部的测试结果，如需更详细测试方式，请联系我司相关人员
