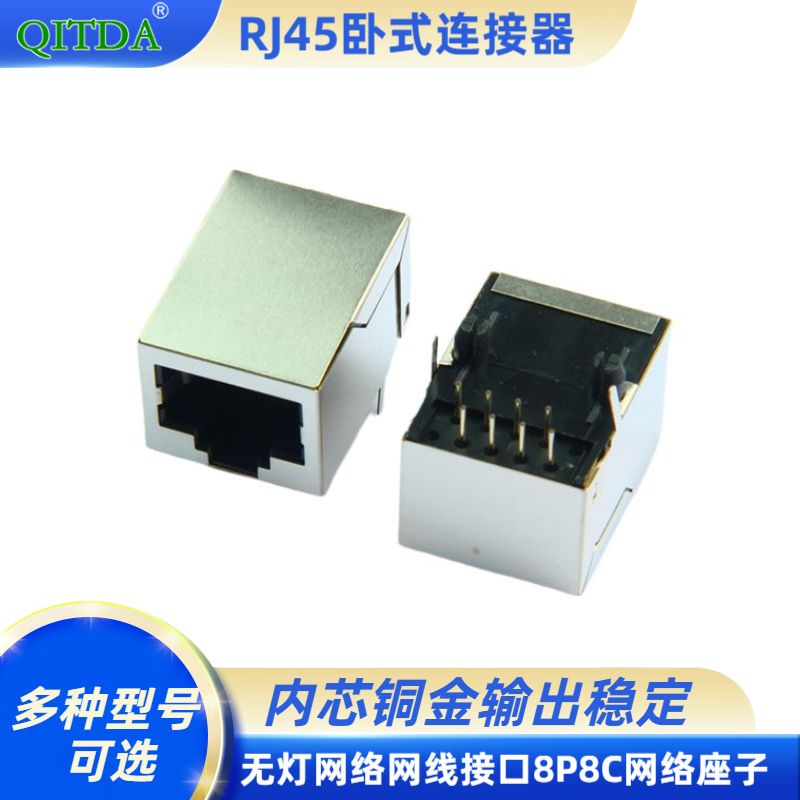

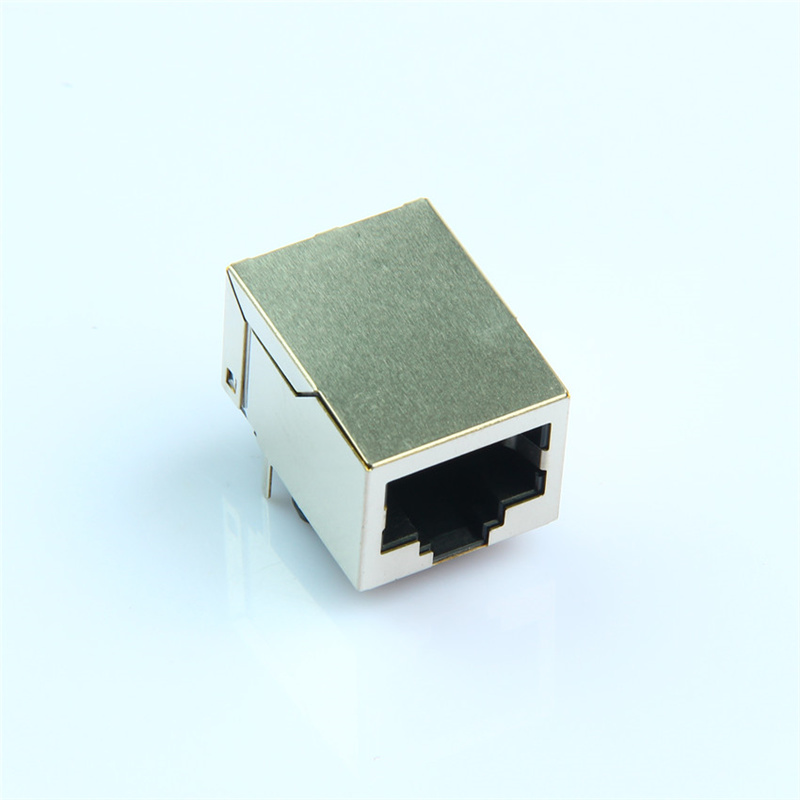

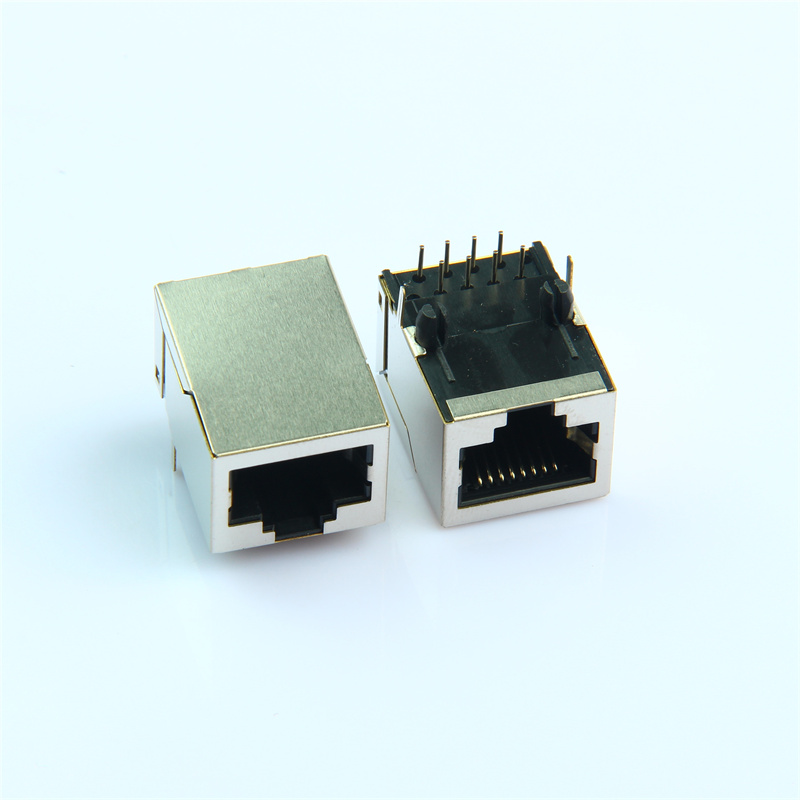

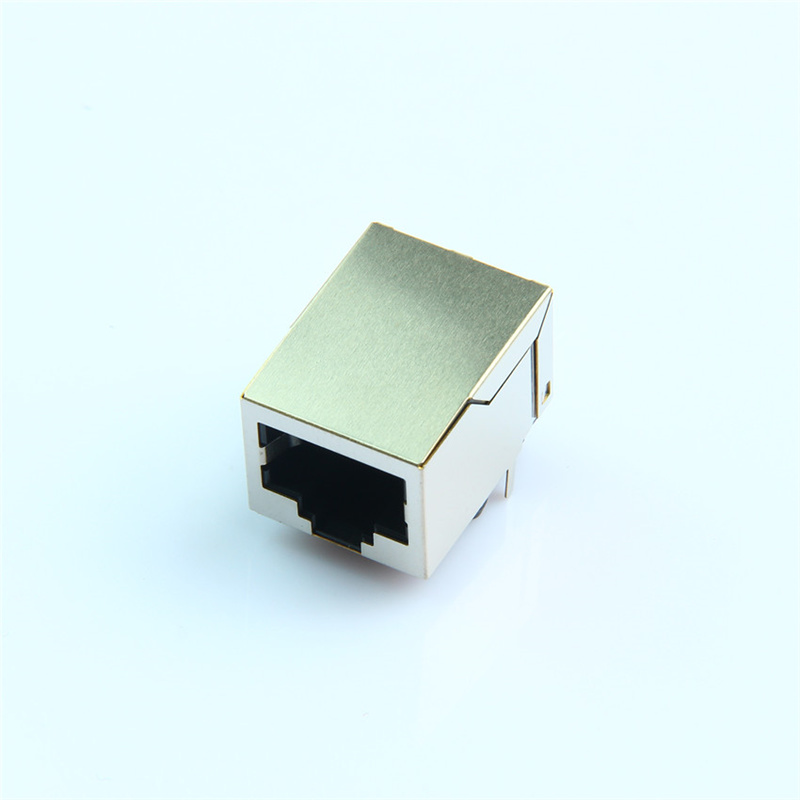

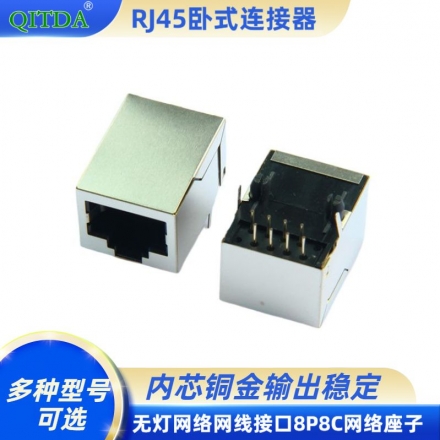

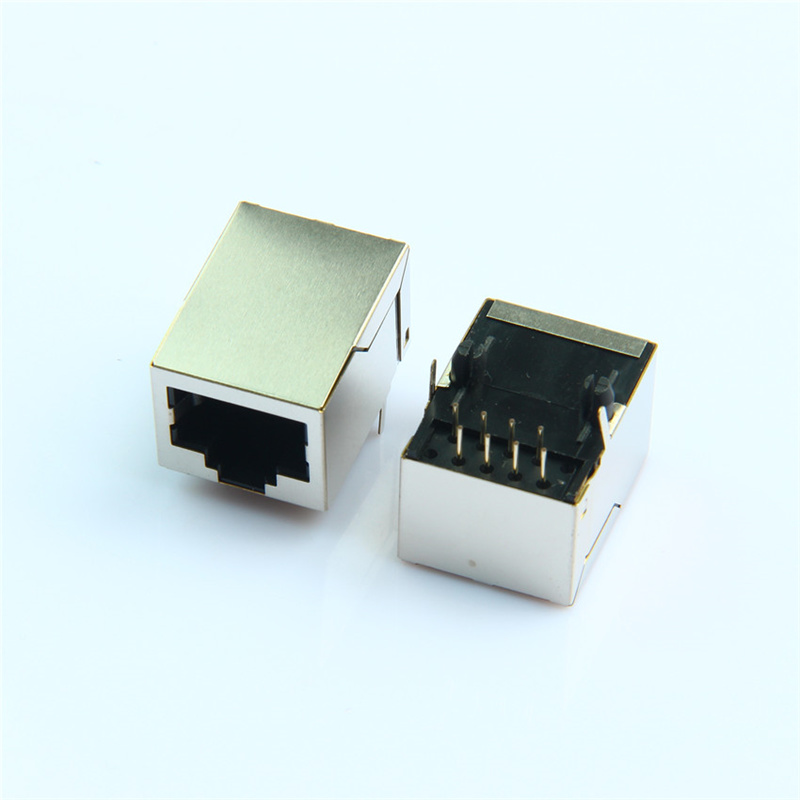

Horizontal RJ45 network connector without indicator light, 8P8C crystal plug socket

Horizontal RJ45 network connector without indicator light, 8P8C crystal plug socket

Feature

Shenzhen Qitaida Electronics Co., Ltd. has over 10 years of experience specializing in TYPE-C connectors, RJ45 connectors, USB interface connectors, SATA connectors, and HDMI connectors. Welcome to call for consultation!
  • Horizontal RJ45 network connector without indicator light, 8P8C crystal plug socket
  • Horizontal RJ45 network connector without indicator light, 8P8C crystal plug socket
  • Horizontal RJ45 network connector without indicator light, 8P8C crystal plug socket
  • Horizontal RJ45 network connector without indicator light, 8P8C crystal plug socket
  • Horizontal RJ45 network connector without indicator light, 8P8C crystal plug socket

Details

RJ45 Connector Product Description:

I. RJ45 Connector Product Attributes:

1. Rated Current: 1.5A
2. Rated Voltage: 30V
3. Durability: Minimum 750 Cycles
4. Contact Impedance: Maximum 50MΩ initially; Maximum 400MΩ
5. Insulation Resistance: Minimum 500MΩ
6. Operating Temperature: -40°C to +70°C

II. RJ45 Jack Housing Material:

1. Insulator Core: PBT/LCP UL94V-0
2. Terminal: Brass/Phosphor Bronze/Highbond Copper, Nickel-plated, Gold-plated contact points at 1U/3U/15U
3. Housing: Stainless Steel/Full Nickel Plating of Minimum 40 Microns

III. Applicable for Production and Inspection of Qidaoda Connectors:

1. Finished product surface should be flat and smooth, free from damage, cracks, or dents, with metal parts free from rust.
2. The dimensions of the finished product must comply with the specifications in the attached drawings.

IV. Materials used must meet ROHS requirements. For reports, please contact our sales personnel directly.

V. Notes: Data regarding product specifications, parameters, lifespan, operating temperature, feel, waterproof rating, etc., represent internal test results from Qidaoda. For more detailed testing methods, please contact our relevant staff.
