RJ45立式网口 RJ45 vertical mesh port

RJ45立式网口 RJ45 vertical mesh port

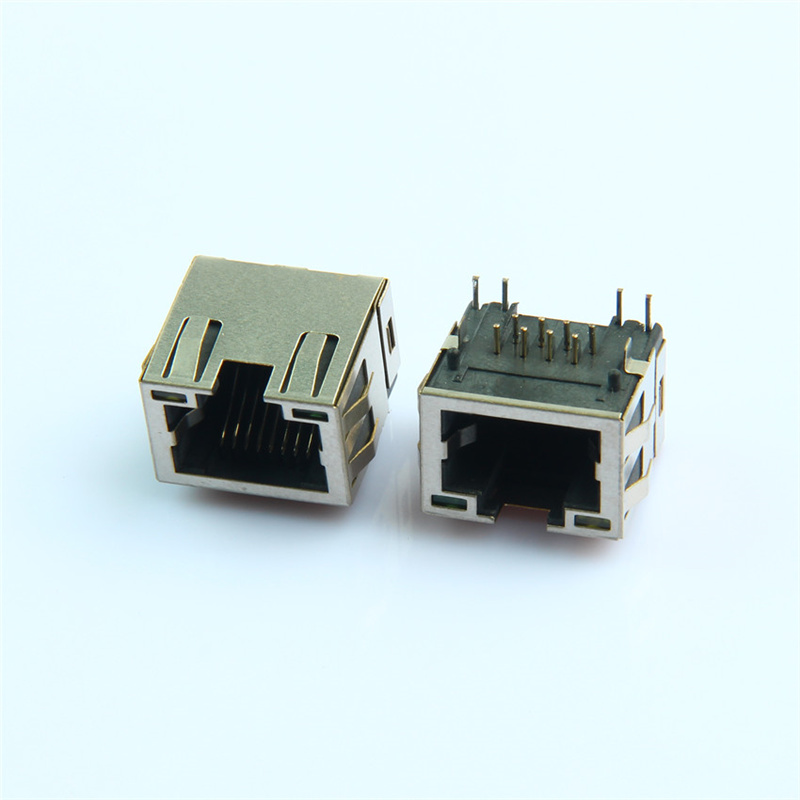

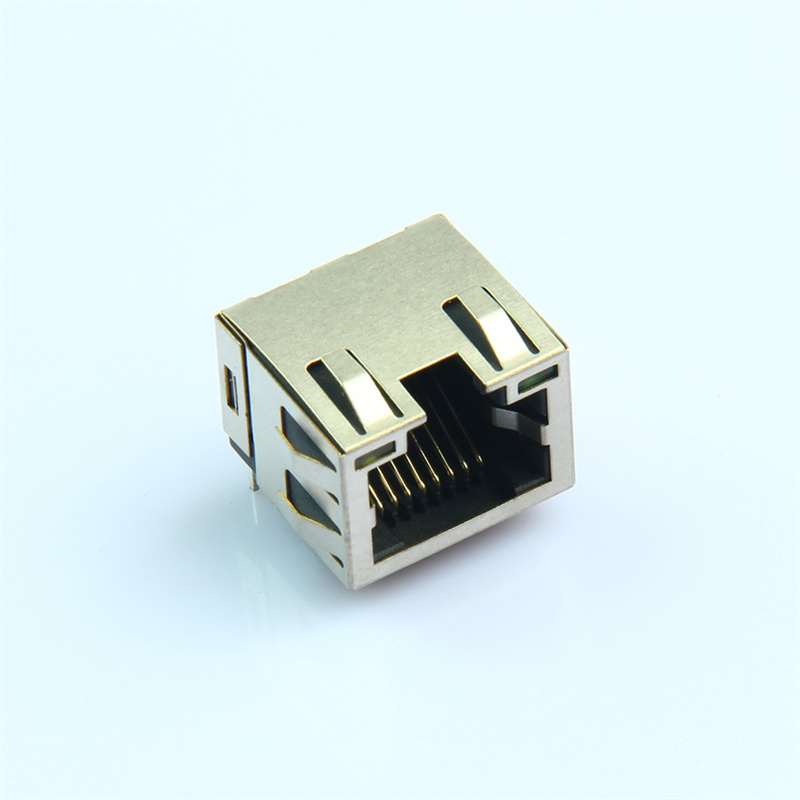

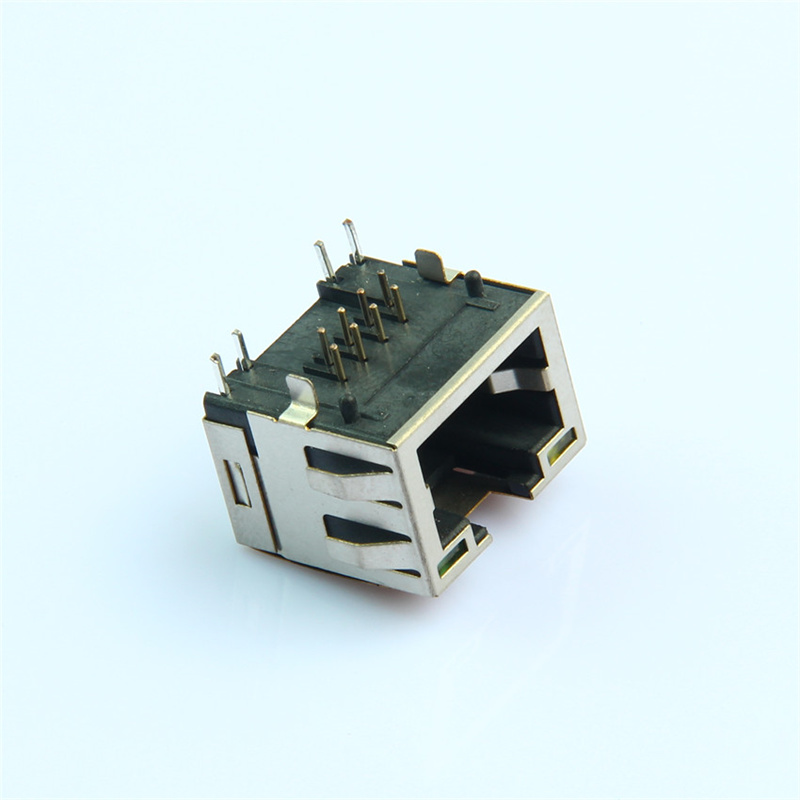

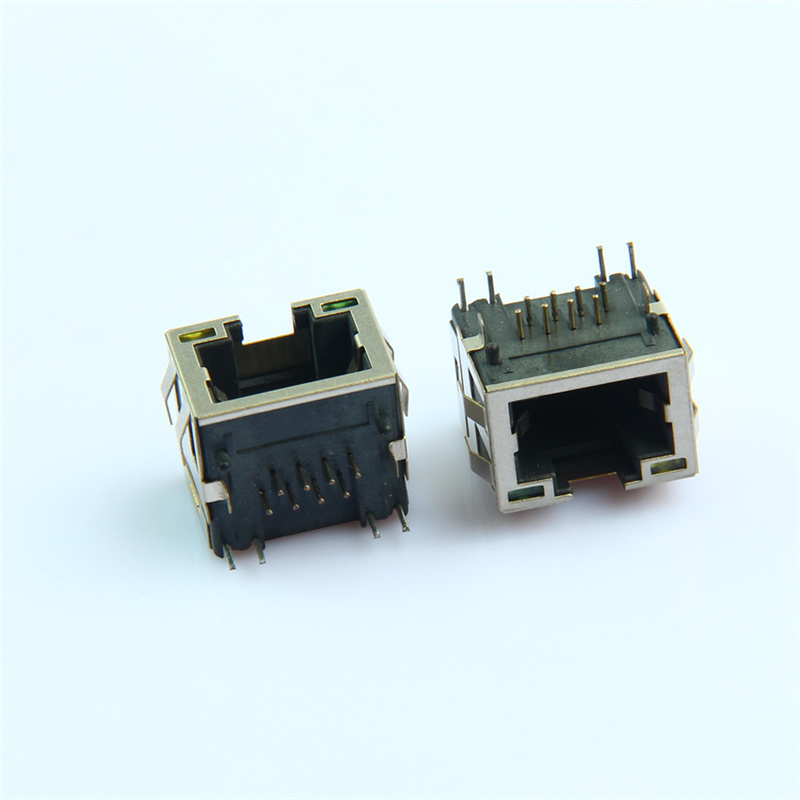

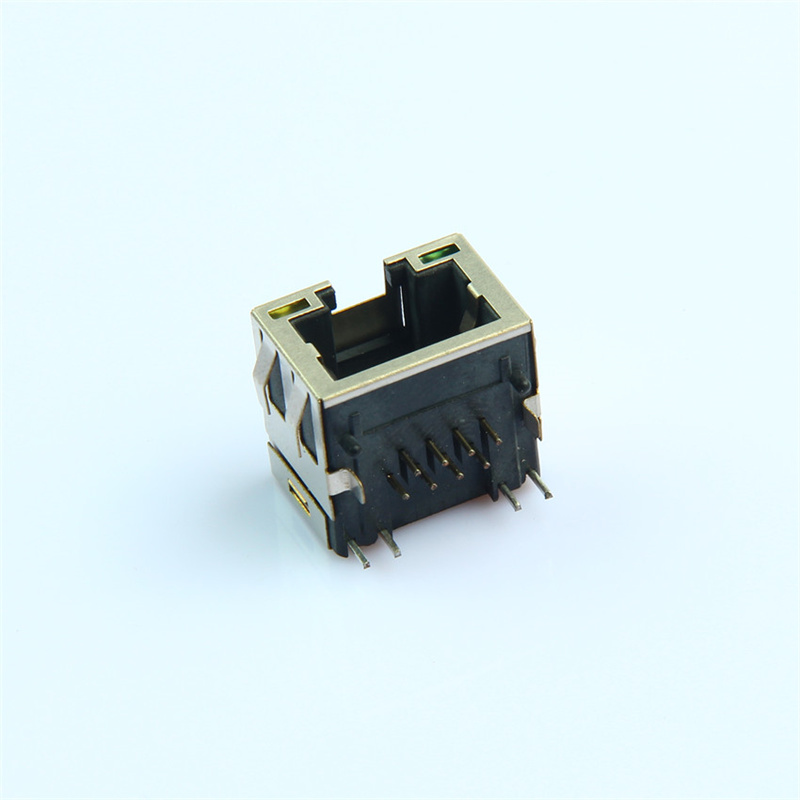

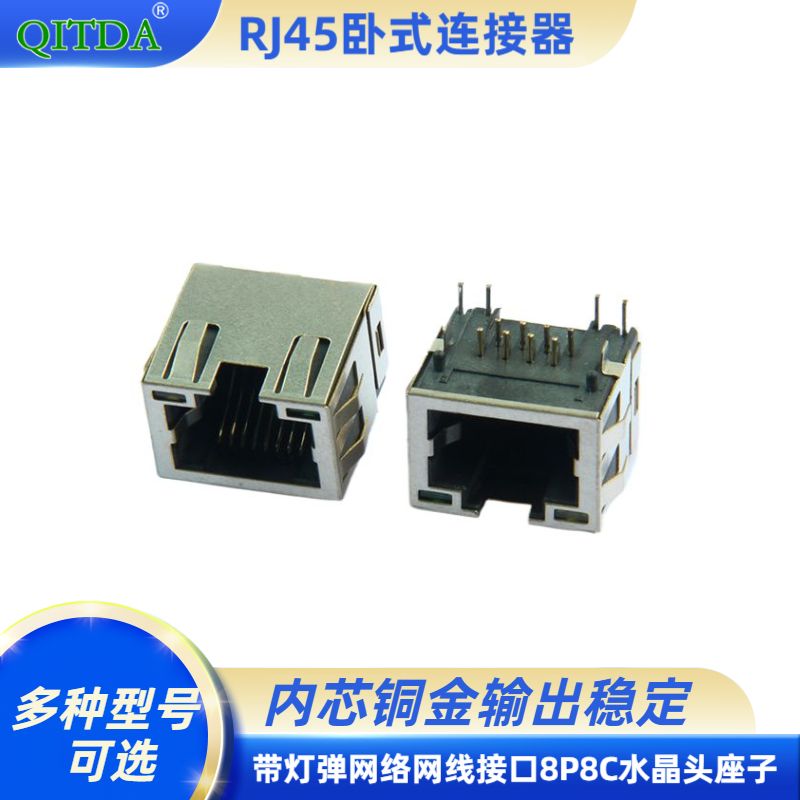

Ultra-thin RJ45 network connector with built-in light, spring-loaded 8P8C crystal plug socket

Ultra-thin RJ45 network connector with built-in light, spring-loaded 8P8C crystal plug socket

Feature

Shenzhen Qitaida Electronics Co., Ltd. has over 10 years of experience specializing in TYPE-C connectors, RJ45 connectors, USB interface connectors, SATA connectors, and HDMI connectors. Welcome to call for consultation!
  • Ultra-thin RJ45 network connector with built-in light, spring-loaded 8P8C crystal plug socket
  • Ultra-thin RJ45 network connector with built-in light, spring-loaded 8P8C crystal plug socket
  • Ultra-thin RJ45 network connector with built-in light, spring-loaded 8P8C crystal plug socket
  • Ultra-thin RJ45 network connector with built-in light, spring-loaded 8P8C crystal plug socket
  • Ultra-thin RJ45 network connector with built-in light, spring-loaded 8P8C crystal plug socket

Details

RJ45 Connector Product Description:

I. RJ45 Connector Product Attributes:

1. Rated Current: 1.5A
2. Rated Voltage: 30V
3. Durability: Minimum 750 Cycles
4. Contact Impedance: Maximum 50MΩ initially; Maximum 400MΩ
5. Insulation Resistance: Minimum 500MΩ
6. Operating Temperature: -40°C to +70°C

II. RJ45 Jack Housing Material:

1. Insulator Core: PBT/LCP UL94V-0
2. Terminal: Brass/Phosphor Bronze/Highbond Copper, nickel base, gold-plated contact points 1U/3U/15U
3. Housing: Stainless Steel/Full Nickel Plating 40U Minimum

III. Applicable for the Production and Inspection of Qidaoda Connectors:

1. Finished products should have a smooth and clean outer surface, free from damage, cracks, or dents, with metal parts free from rust.
2. The dimensions of finished products must comply with the specifications in the attached drawings.

IV. Materials used must meet ROHS requirements. For reports, please contact our sales personnel directly.

V. Notes: Data on product specifications, parameters, lifespan, operating temperature, feel, waterproof rating, etc., only represent internal test results from Qidaoda. For more detailed testing methods, please contact our relevant staff.
