RJ45立式网口 RJ45 vertical mesh port

RJ45立式网口 RJ45 vertical mesh port

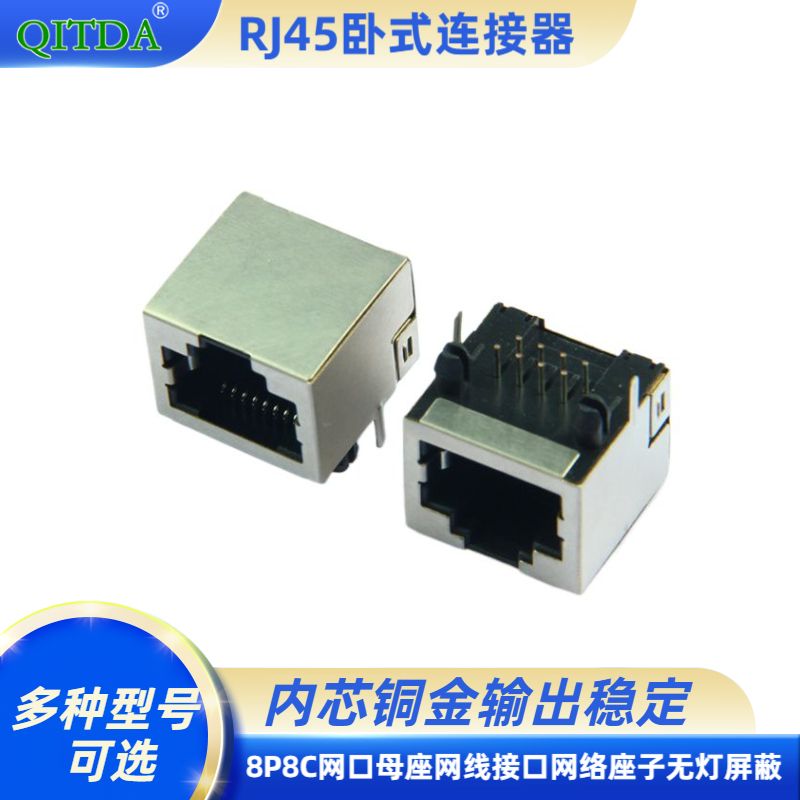

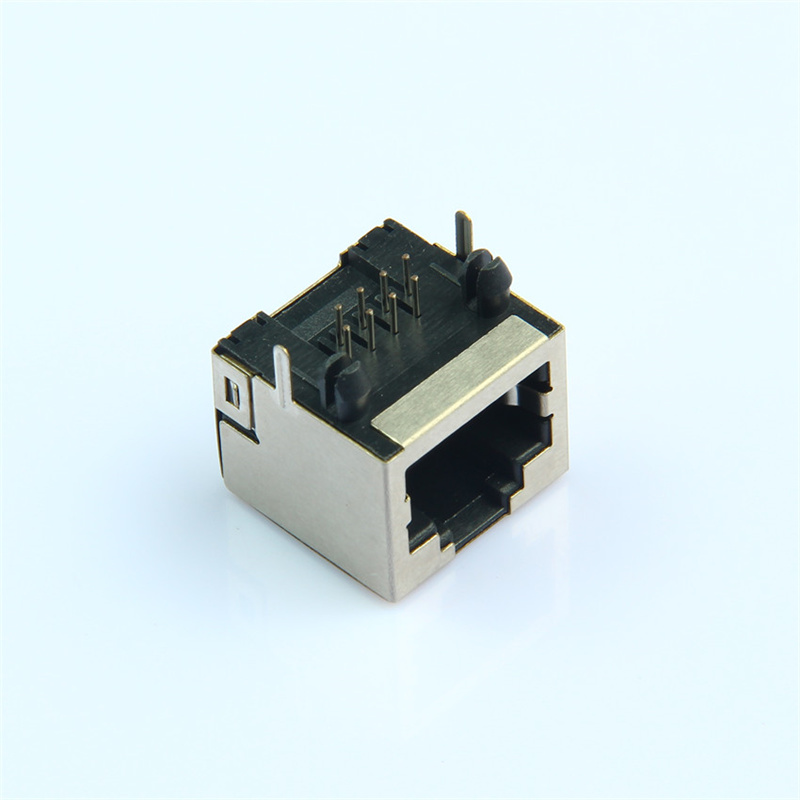

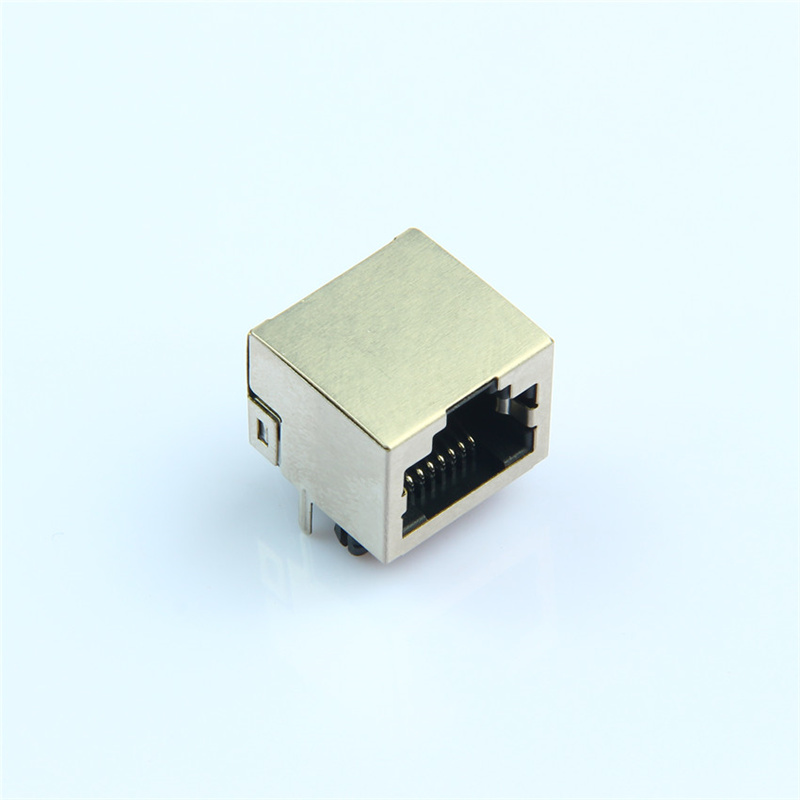

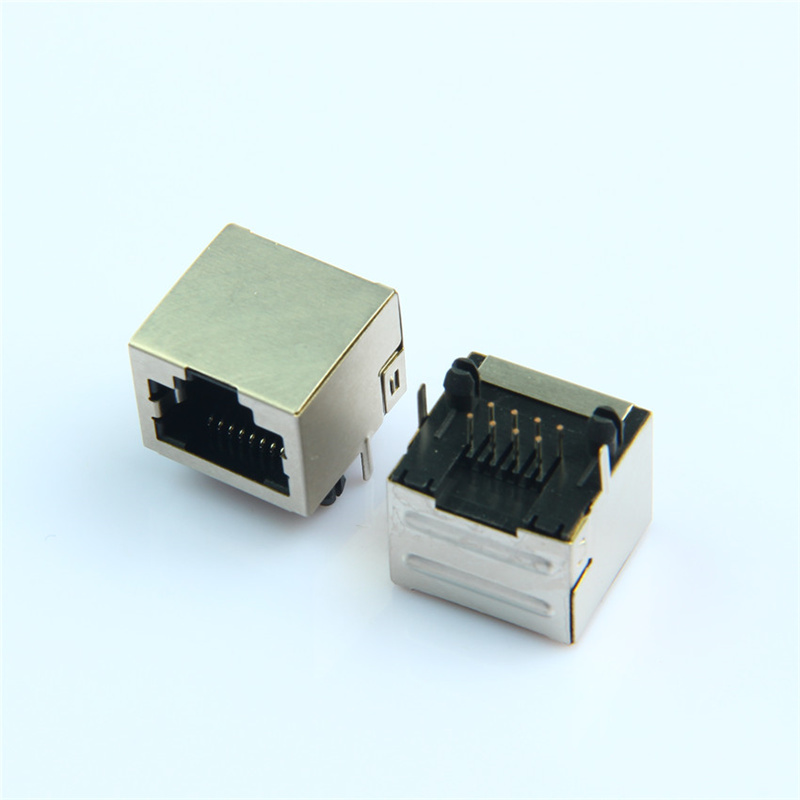

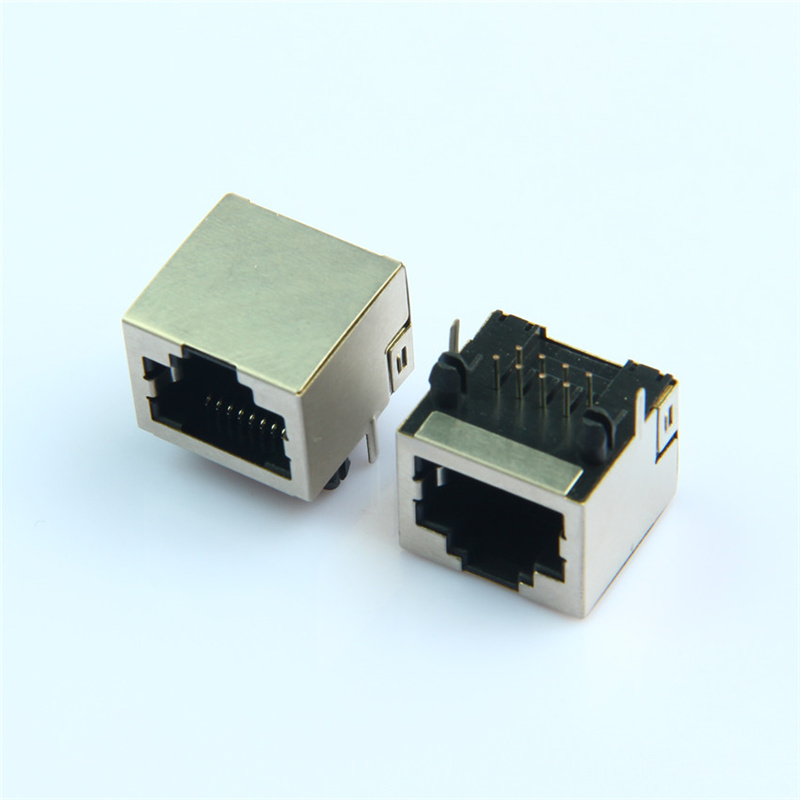

Ultra-thin 8P8C RJ45 shielded female connector without indicator lights for network sockets

Ultra-thin 8P8C RJ45 shielded female connector without indicator lights for network sockets

Feature

Shenzhen Qitaida Electronics Co., Ltd. has over 10 years of experience specializing in TYPE-C connectors, RJ45 connectors, USB interface connectors, SATA connectors, and HDMI connectors. Welcome to call for consultation!
  • Ultra-thin 8P8C RJ45 shielded female connector without indicator lights for network sockets
  • Ultra-thin 8P8C RJ45 shielded female connector without indicator lights for network sockets
  • Ultra-thin 8P8C RJ45 shielded female connector without indicator lights for network sockets
  • Ultra-thin 8P8C RJ45 shielded female connector without indicator lights for network sockets
  • Ultra-thin 8P8C RJ45 shielded female connector without indicator lights for network sockets

Details

RJ45 Connector Product Description:

I. RJ45 Connector Product Attributes:

1. Rated Current: 1.5A
2. Rated Voltage: 30V
3. Durability: Minimum 750 Cycles
4. Contact Impedance: Maximum 50MΩ initially; Maximum 400MΩ
5. Insulation Resistance: Minimum 500MΩ
6. Operating Temperature: -40°C to +70°C

II. RJ45 Jack Housing Material:

1. Insulator Core: PBT/LCP UL94V-0
2. Terminal: Brass/Phosphor Bronze/Highbond Copper, Nickel base, Gold plated contact points 1U/3U/15U
3. Housing: Stainless Steel/Full area nickel plating 40U minimum

III. Applicable for the production and inspection of Qida Da connector series products:

1. Finished product exterior surface should be flat and smooth, free from damage, cracks, or dents, with metal parts free from rust.
2. The finished product's dimensions should comply with the specifications in the attached drawings.

IV. Materials used must meet ROHS requirements. For reports, please contact the sales personnel directly.

V. Note: Data regarding product specifications, parameters, lifespan, operating temperature, feel, waterproof rating, etc., only represent internal test results from Qida Da. For more detailed testing methods, please contact our relevant personnel.
