RJ45立式网口 RJ45 vertical mesh port

RJ45立式网口 RJ45 vertical mesh port

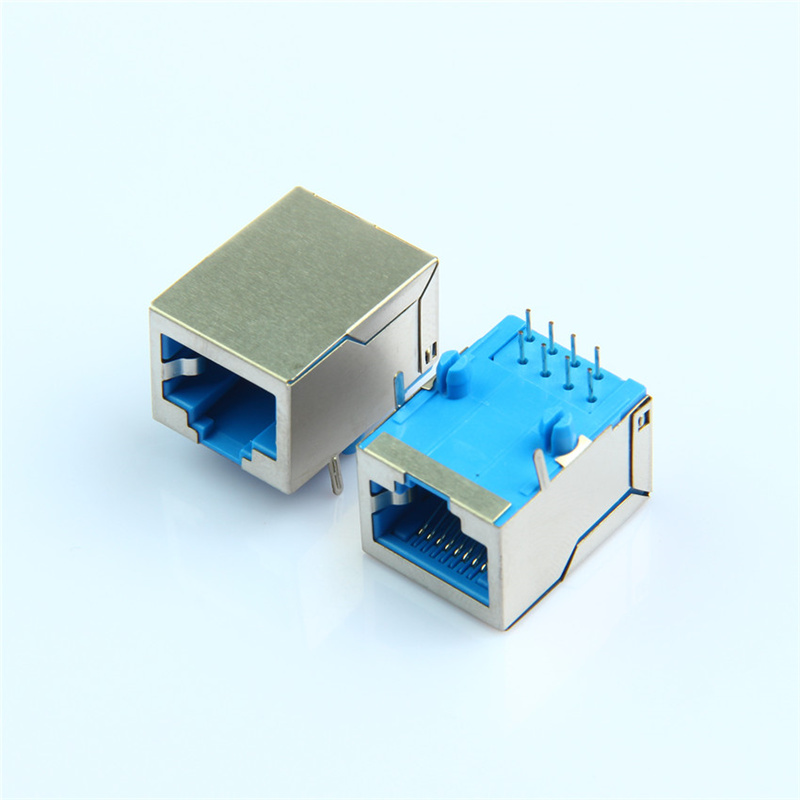

Blue RJ45 female connector network port Ethernet cable interface 10P8C network socket with shielding, no indicator lights

Blue RJ45 female connector network port Ethernet cable interface 10P8C network socket with shielding, no indicator lights

Feature

深圳市祺泰达电子有限公司10年+经验主营TYPEC连接器,ri45连接器,USB连接器接口,SATA连接器,HDMI连接器,欢迎致电咨询!
  • Blue RJ45 female connector network port Ethernet cable interface 10P8C network socket with shielding, no indicator lights
  • Blue RJ45 female connector network port Ethernet cable interface 10P8C network socket with shielding, no indicator lights
  • Blue RJ45 female connector network port Ethernet cable interface 10P8C network socket with shielding, no indicator lights
  • Blue RJ45 female connector network port Ethernet cable interface 10P8C network socket with shielding, no indicator lights
  • Blue RJ45 female connector network port Ethernet cable interface 10P8C network socket with shielding, no indicator lights

Details

RJ45 Connector Product Description:

I. RJ45 Connector Product Attributes:

1. Rated Current: 1.5A
2. Rated Voltage: 30V
3. Durability: Minimum 750 Cycles
4. Contact Impedance: Maximum 50MΩ initially; Maximum 400MΩ
5. Insulation Resistance: Minimum 500MΩ
6. Operating Temperature: -40°C to +70°C

II. RJ45 Jack Housing Material:

1. Insulator Core: PBT/LCP UL94V-0
2. Terminal: Brass/Phosphor Bronze/Highbond Copper, Nickel-plated, Gold-plated contact points 1U/3U/15U
3. Housing: Stainless Steel/Full area nickel-plated 40U minimum

III. Applicable for the production and inspection of Qida Technology connector series products:

1. Finished product exterior surface should be flat and smooth, free from damage, cracks, or dents, and metal parts should have no rust.
2. The finished product's dimensions should comply with the specifications in the attached drawings.

IV. Materials used must meet ROHS requirements. For reports, please contact our sales personnel directly.

V. Note: Data regarding product specifications, parameters, lifespan, operating temperature, feel, waterproof rating, etc., only represent internal test results from Qida Technology. For more detailed testing methods, please contact our relevant staff.
