RJ45立式网口 RJ45 vertical mesh port

RJ45立式网口 RJ45 vertical mesh port

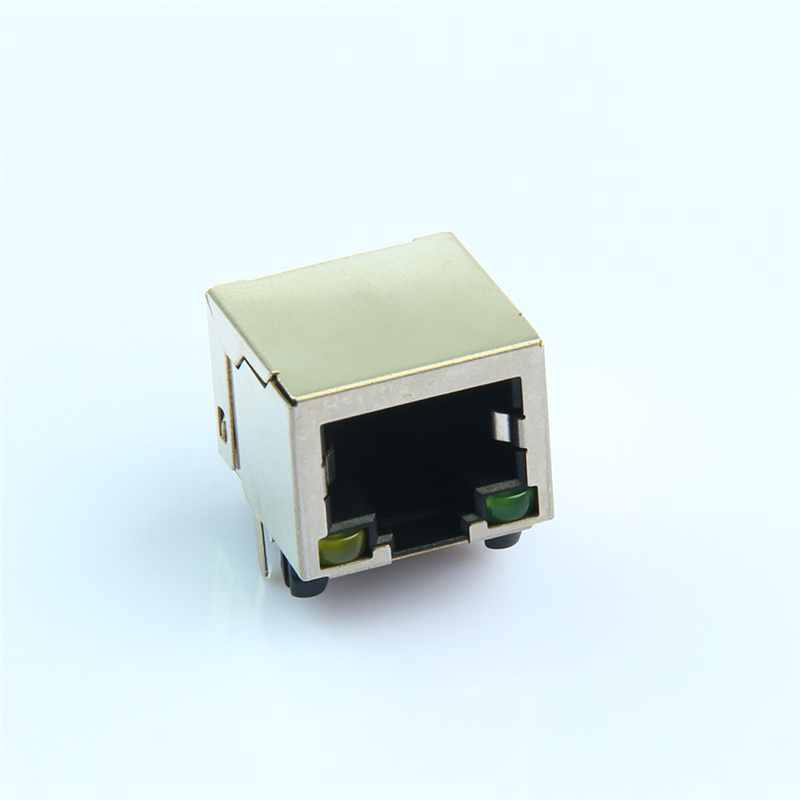

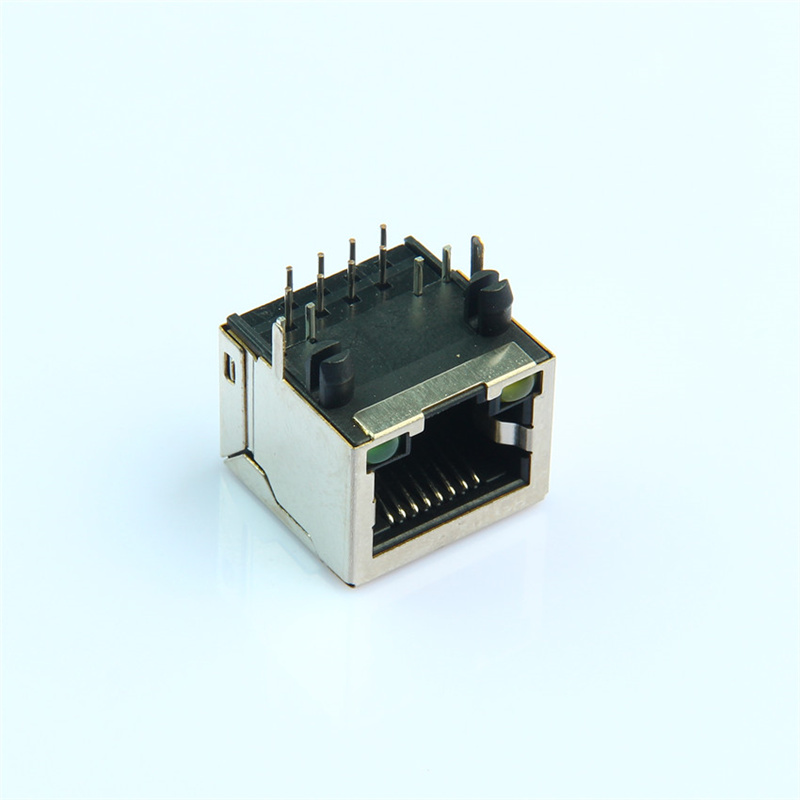

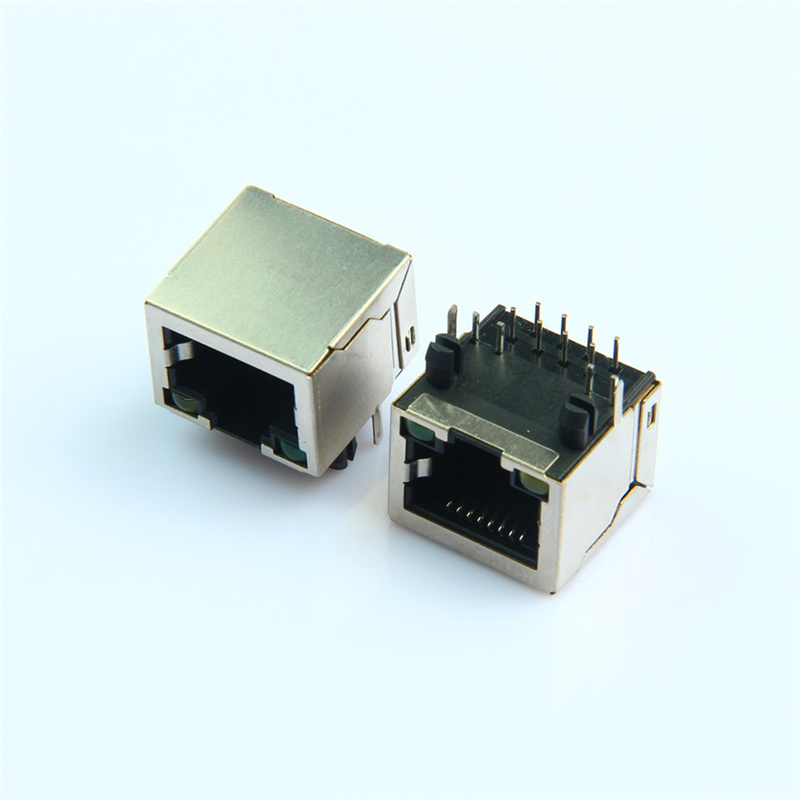

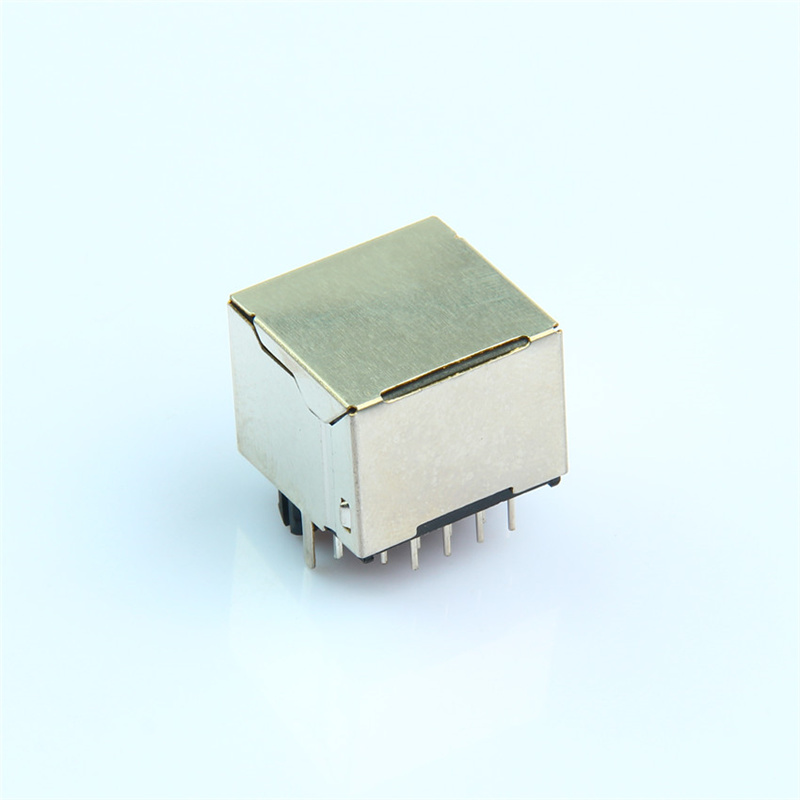

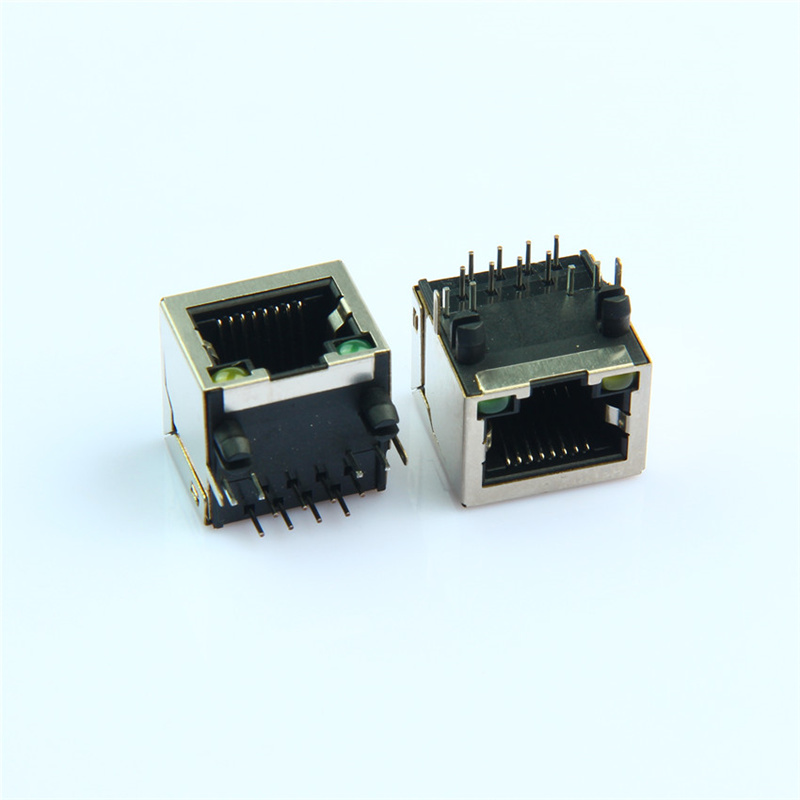

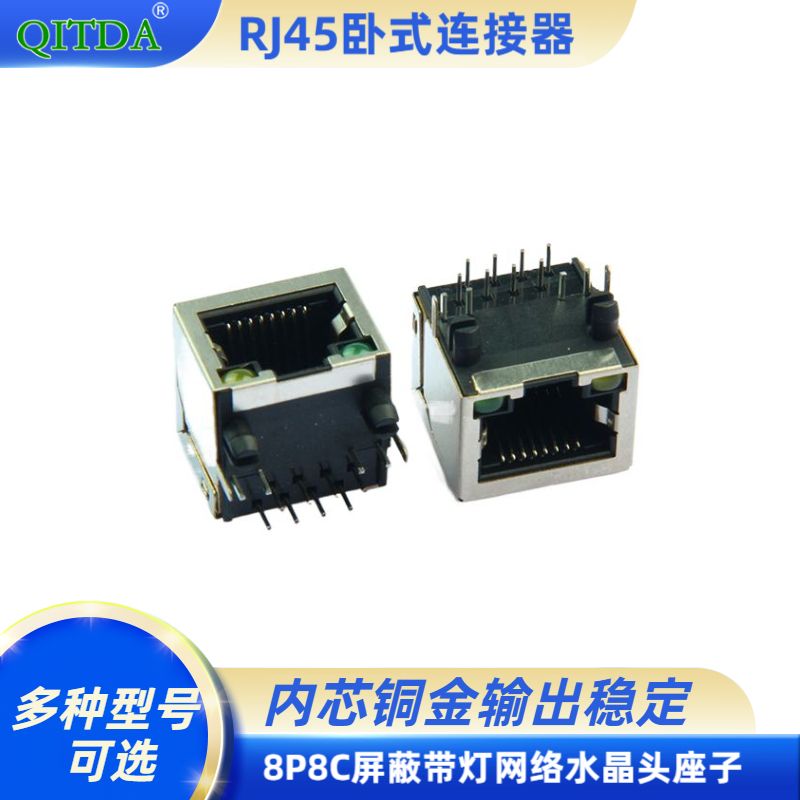

RJ45 female connector network port Ethernet interface 10P8C network socket with indicator light and shielding

RJ45 female connector network port Ethernet interface 10P8C network socket with indicator light and shielding

Feature

Shenzhen Qitaida Electronics Co., Ltd. has over 10 years of experience specializing in TYPE-C connectors, RJ45 connectors, USB interface connectors, SATA connectors, and HDMI connectors. Welcome to call for consultation!
  • RJ45 female connector network port Ethernet interface 10P8C network socket with indicator light and shielding
  • RJ45 female connector network port Ethernet interface 10P8C network socket with indicator light and shielding
  • RJ45 female connector network port Ethernet interface 10P8C network socket with indicator light and shielding
  • RJ45 female connector network port Ethernet interface 10P8C network socket with indicator light and shielding
  • RJ45 female connector network port Ethernet interface 10P8C network socket with indicator light and shielding

Details

RJ45 Connector Product Description:

I. RJ45 Connector Product Attributes:

1. Rated Current: 1.5A
2. Rated Voltage: 30V
3. Durability: Minimum 750 Cycles
4. Contact Impedance: Maximum 50MΩ initially; Maximum 400MΩ
5. Insulation Resistance: Minimum 500MΩ
6. Operating Temperature: -40°C to +70°C

II. RJ45 Jack Housing Material:

1. Insulator Core: PBT/LCP UL94V-0
2. Terminal: Brass/Phosphor Bronze/Highbond Copper, Nickel-plated, Gold-plated contact points at 1U/3U/15U
3. Housing: Stainless Steel/Full area nickel-plated 40U minimum

III. Applicable for the production and inspection of Qida Technology connector series products:

1. Finished product exterior surface should be flat and smooth, free from damage, cracks, or dents, with metal parts free from rust.
2. The finished product's dimensions must comply with the specifications in the attached drawings.

IV. Materials used must meet ROHS requirements. For reports, please contact our sales personnel directly.

V. Notes: Data on product specifications, parameters, lifespan, operating temperature, feel, waterproof rating, etc., only represent internal test results from Qida Technology. For more detailed testing methods, please contact our relevant staff.
