RJ45立式网口 RJ45 vertical mesh port

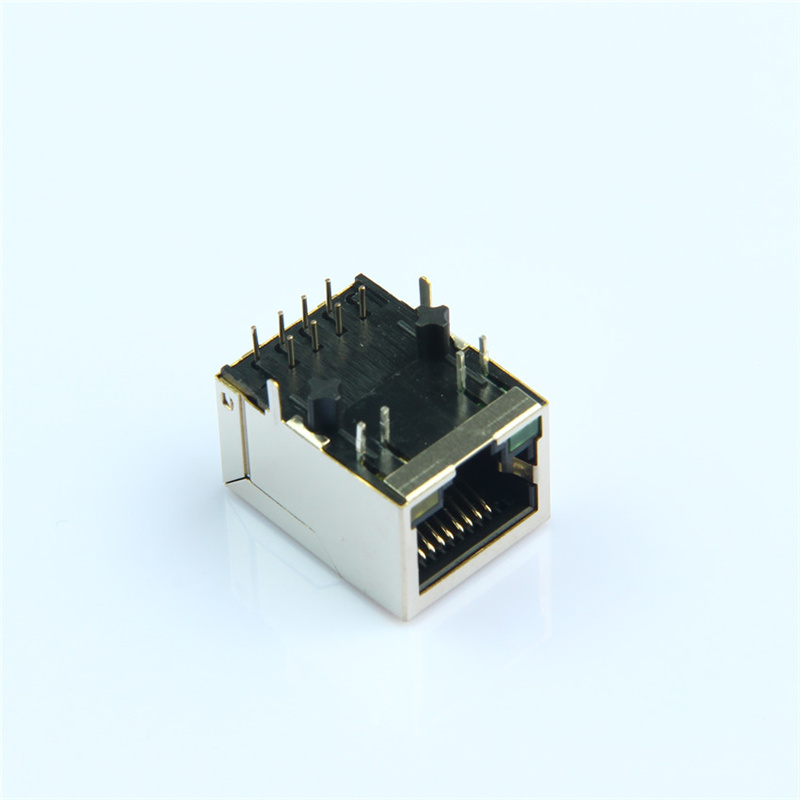

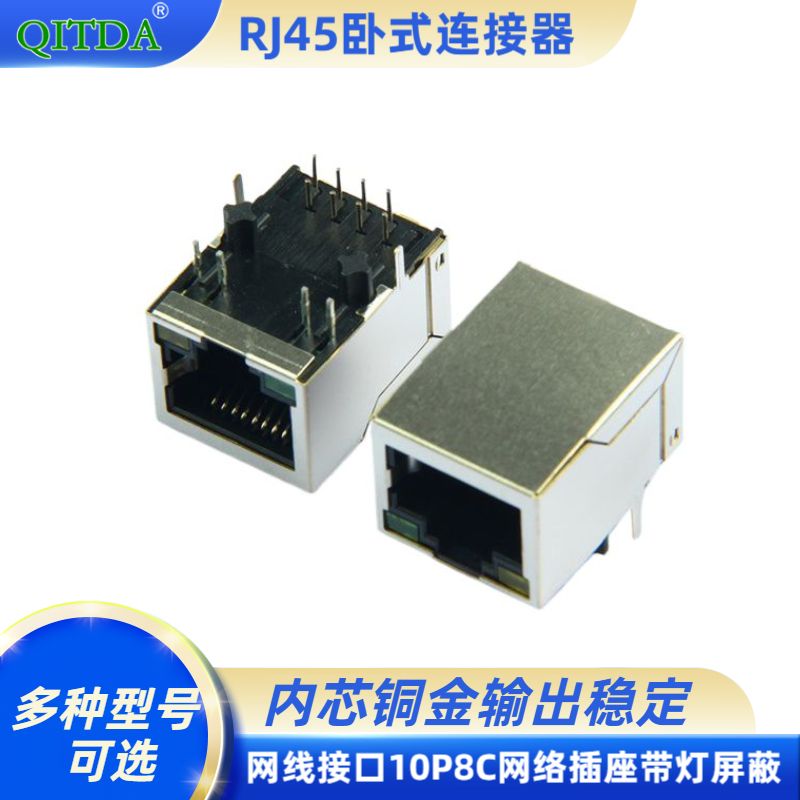

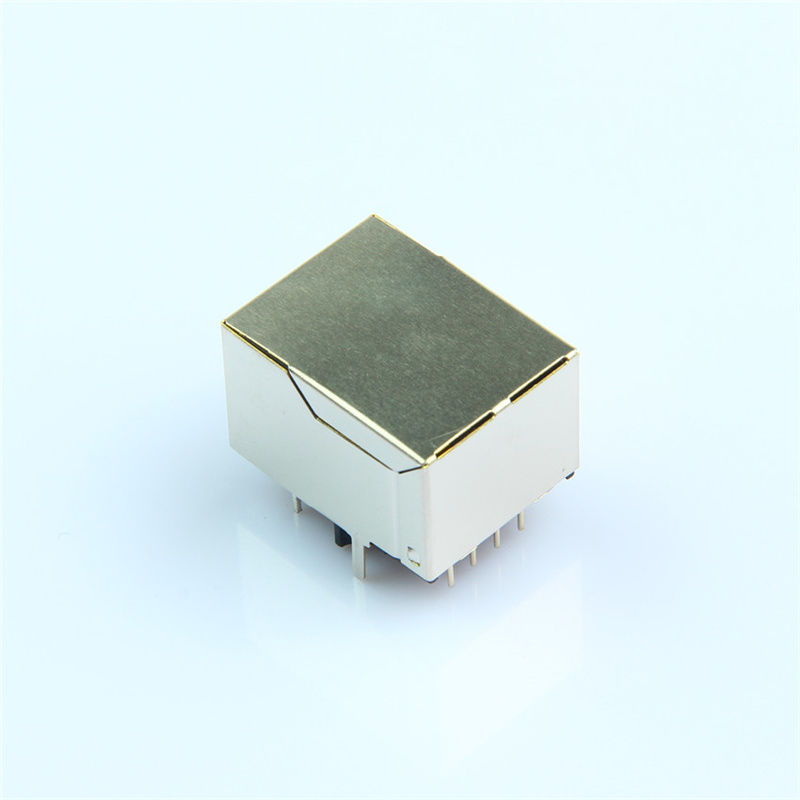

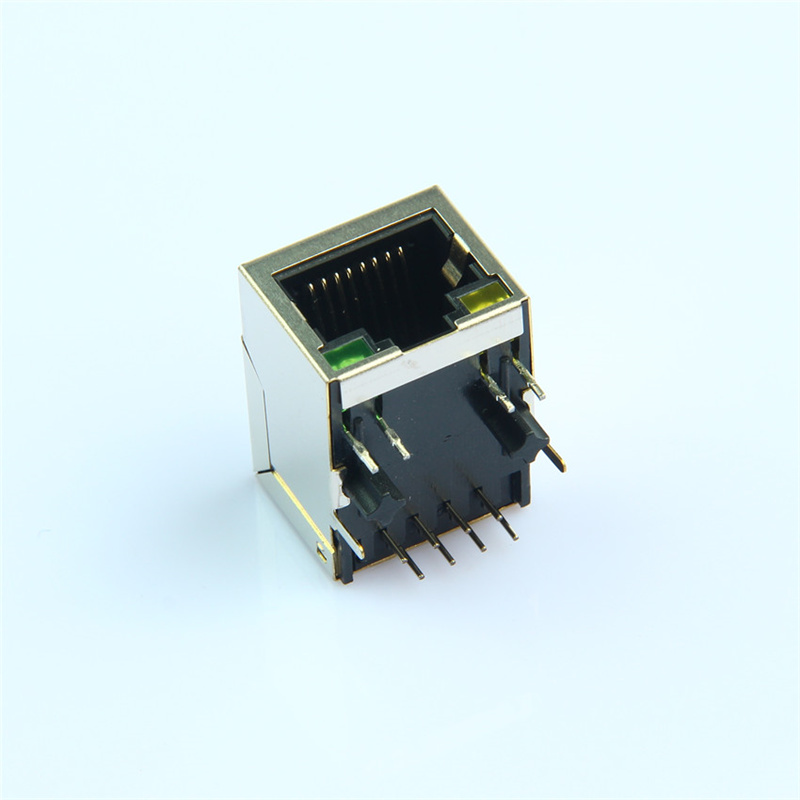

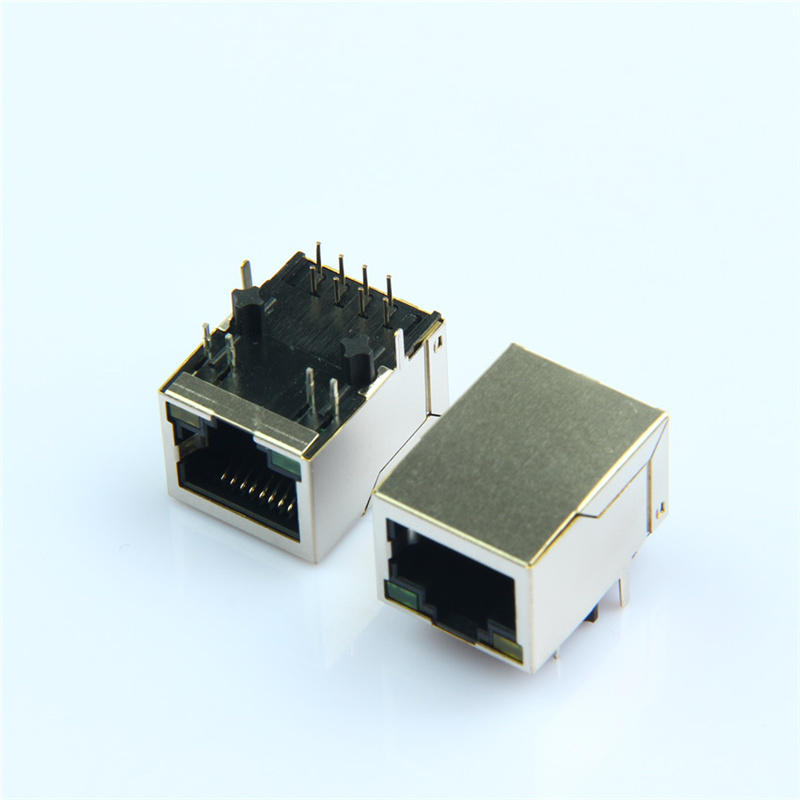

RJ45 horizontal connector with light, spring-loaded network cable interface, 8P8C crystal socket
Feature
Details
RJ45 Connector Product Description:
I. RJ45 Connector Product Attributes:
1. Rated Current: 1.5A
2. Rated Voltage: 30V
3. Durability: Minimum 750 Cycles
4. Contact Impedance: Maximum 50MΩ initially; Maximum 400MΩ
5. Insulation Resistance: Minimum 500MΩ
6. Operating Temperature: -40°C to +70°C
II. RJ45 Jack Housing Material:
1. Insulator Core: PBT/LCP UL94V-0
2. Terminal: Brass/Phosphor Bronze/Highbond Copper, Nickel base, Gold-plated contact points 1U/3U/15U
3. Housing: Stainless Steel/Full area nickel plating 40U minimum
III. Applicable for the production and inspection of Qida Technology connector series products:
1. Finished product exterior surface should be flat and smooth, free from damage, cracks, or dents, with metal parts free from rust.
2. The finished product's dimensions should comply with the specifications in the attached drawings.
IV. Materials used must meet ROHS requirements. For reports, please contact our sales personnel directly.
V. Notes: Data regarding product specifications, parameters, lifespan, operating temperature, feel, waterproof rating, etc., only represent internal test results from Qida Technology. For more detailed testing methods, please contact our relevant staff.
