RJ45+USB连接器
详情介绍
-
属性项 参数 English 产品名称 RJ45 + 双 USB3.0 双层集成母座（带变压器） RJ45 + Dual USB3.0 Stacked Combo Jack with integrated magnetics 端口配置 上层 RJ45 网口 + 下层 2 个 USB3.0 母口 1×RJ45 Port + 2×USB3.0 Female Ports Stacked layout RJ45 规格 10P8C 10P8C RJ45 速率 百兆 / 千兆 / 2.5G 可选 100M / Gigabit / 2.5G optional 内置器件 RJ45 端集成网络变压器 + EMI 滤波器磁组 RJ45 side built‑in Transformer & EMI Filter Magnetics RJ45 指示灯 带绿黄双色 LED 链路信号灯 Dual‑color(Green/Yellow) LED status indicator for RJ45 USB 规格 USB3.0，向下兼容 USB2.0 USB3.0 spec, backward compatible with USB2.0 外壳 一体式金属屏蔽外壳 Integrated full shielded metal housing 安装方式 DIP 通孔直插焊接 Through‑hole DIP mounting RJ45 接触材质 铜端子，触点镀金（3U‑30U 可选） RJ45 copper contact, gold‑plated (3U‑30U optional) USB 接触材质 铜合金端子，镀金 USB copper‑alloy contact, gold‑plated RJ45 特性阻抗 100Ω Characteristic Impedance:100 Ohm 耐压 2250VDC Hi‑pot Withstand Voltage:2250VDC 执行标准 IEEE802.3, USB3.0 specification, RoHS Compliant with IEEE802.3, USB3.0 standard, RoHS 焊接耐温 Max 265℃波峰焊 / 回流焊 Max 265℃ wave / reflow soldering 环保认证 RoHS、SGS、ISO9001 RoHS, SGS, ISO9001 品牌 QITDA 祺泰达 QITDA 可选定制 RJ45 速率、LED 灯色、镀金厚度、屏蔽弹片、外壳激光打标、USB 口数量 Custom: RJ45 speed grade, LED color, gold plating thickness, shield spring finger, laser marking, USB port quantity 应用场景 工业主板、工控网关、交换机、嵌入式设备、NAS、通信设备、网络终端 Industrial mainboard, IOT gateway, switch, embedded device, NAS storage, communication terminal
rj45+usb3.0 双层组合母座，rj45 usb3.0 combo 带变压器，rj45 usb 集成网口座子，千兆 rj45 usb3.0 复合连接器，rj45 combo jack 带滤波器）
产品简介

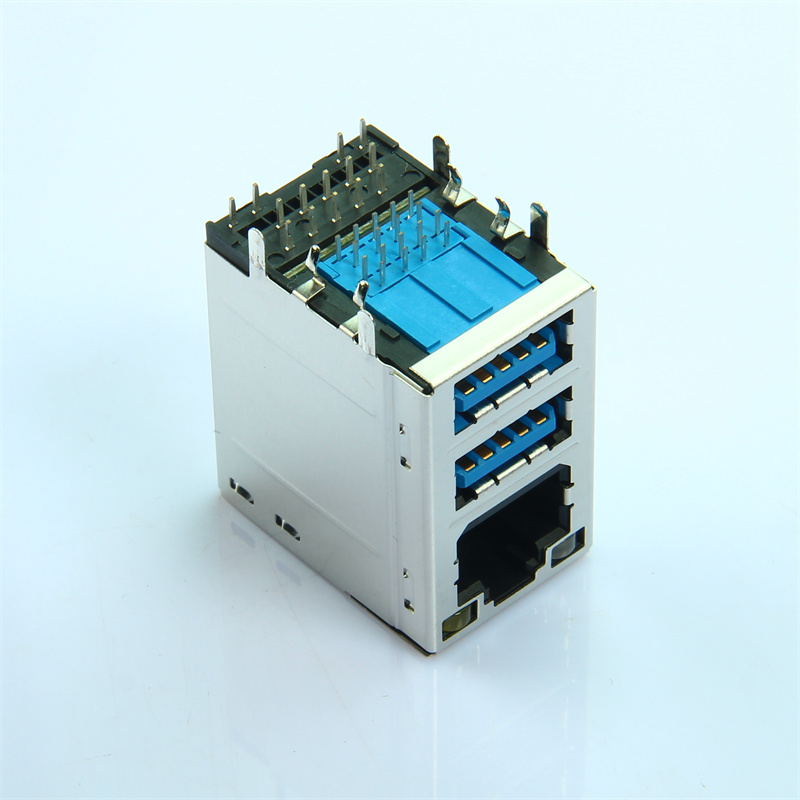

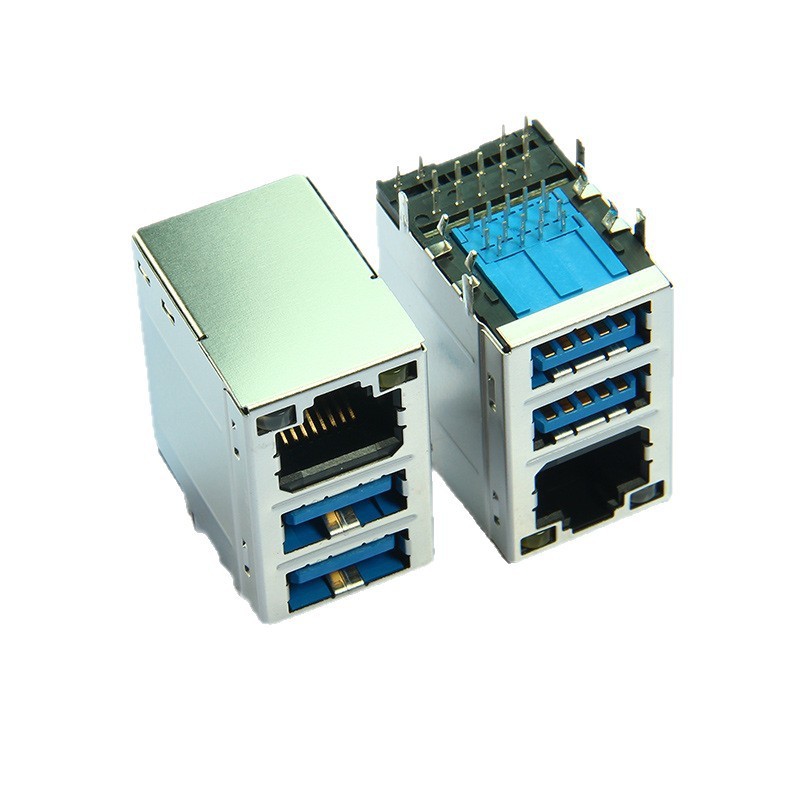

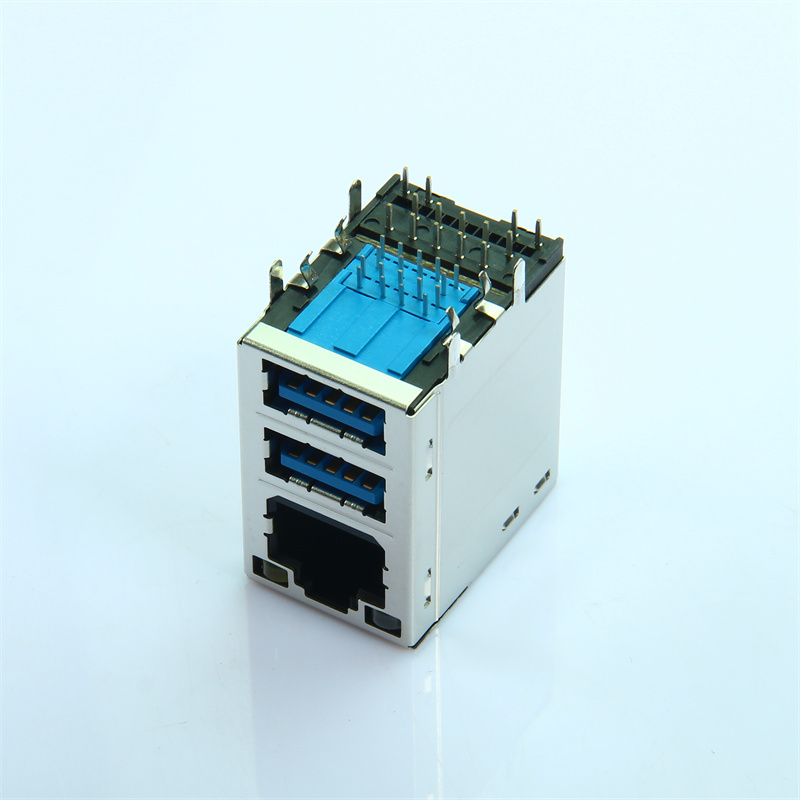

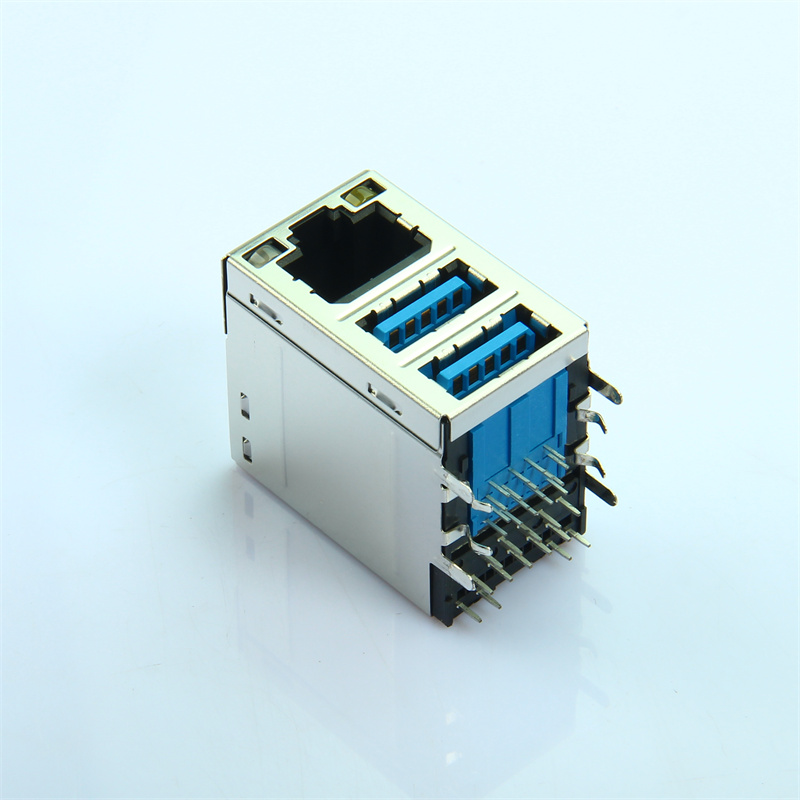

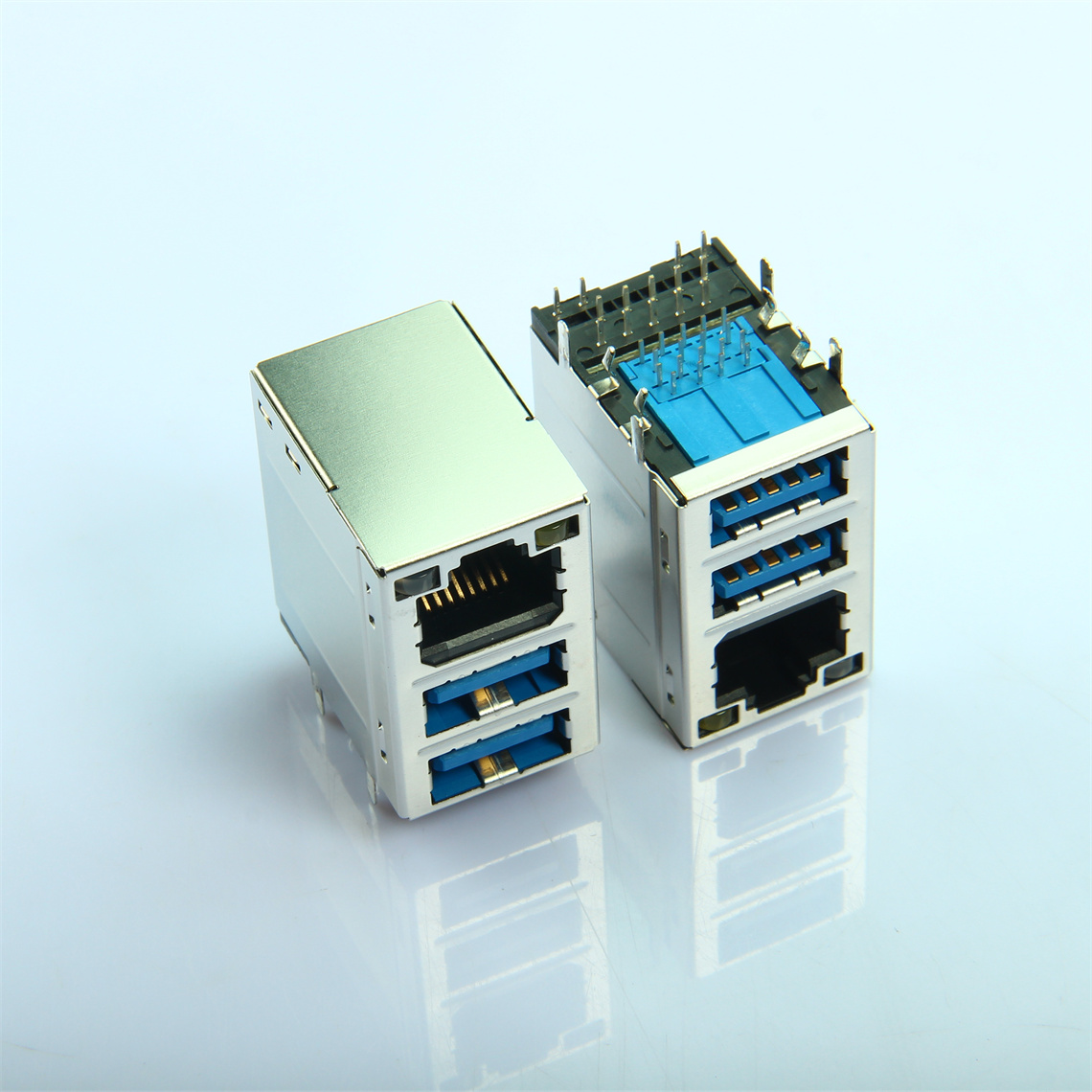

QITDA 祺泰达RJ45 + 双 USB3.0 双层集成母座，采用一体化堆叠组合结构，单颗连接器同时提供 1 路 RJ45 以太网口 + 2 路 USB3.0 接口。RJ45 端口内置网络变压器与 EMI 滤波器磁环，支持百兆 / 千兆 / 2.5G 多种速率可选，配备双色链路状态 LED 指示灯；USB3.0 接口向下兼容 USB2.0。一体式金属屏蔽壳体，DIP 直插焊接，大幅节省 PCB 板空间，网口自带磁组省去外部隔离器件，简化硬件设计。广泛应用于工业主板、嵌入式设备、网关、NAS 存储、网络通信终端等，支持多规格定制。
核心优势
RJ45 + 双 USB3.0 堆叠一体化集成
单座子集成网口 + 两组 USB3.0 接口，双层堆叠布局，极大节约 PCB 占用面积，简化结构设计，减少物料数量。
RJ45 内置变压器滤波器磁组
网口端集成磁环变压器与 EMI 滤波器，完成信号隔离、抑制共模噪声干扰，保障百兆 / 千兆 / 2.5G 信号完整性，无需外接磁件，降低 EMI 电磁干扰。
RJ45 带双色 LED 状态指示灯
绿黄双色 LED 直观显示网络链路连接、数据活动状态，方便设备调试维护；LED 灯色可按需定制。
一体式全金属屏蔽外壳
整体金属屏蔽壳体，同时对网口与 USB 接口做电磁屏蔽，隔绝内外电磁干扰，工业环境抗干扰性能强。
DIP 通孔直插焊接
标准 DIP 插针结构，适配波峰焊制程，焊接定位牢固，适合大批量工厂生产装配。
高品质镀金接触端子
RJ45 网口铜端子镀金可选 3U‑30U；USB3.0 采用铜合金镀金触点，抗氧化耐插拔，网口与 USB 信号传输稳定。
多速率版本可选，合规可靠
RJ45 支持百兆、千兆、2.5G 速率选型；满足 IEEE802.3、USB3.0 规范，2250VDC 高压绝缘，RoHS 环保，耐受 265℃高温焊接。
典型应用
工业控制主板、嵌入式硬件、物联网网关、网络交换机、NAS 网络存储设备、通信模块、工控终端设备。
定制服务
RJ45 速率可选：百兆 / 千兆 /2.5G
LED 指示灯颜色定制
RJ45 触点镀金厚度：3U/6U/15U/30U 可选
屏蔽弹片有无可选
外壳激光刻印型号 / LOGO
USB 端口数量可调整
提供 PIN‑PIN 兼容替代料
RJ45 USB3.0 combo jack with magnetics, stacked rj45 dual usb3.0 connector, rj45 combo modular jack transformer filter, gigabit rj45 usb3.0 stacked female）
Product Introduction
QITDA RJ45 + Dual USB3.0 stacked combo jack integrates one RJ45 ethernet port and two USB3.0 ports in single shielded housing. RJ45 side is equipped with built‑in magnetics transformer and EMI filter, support 100M / Gigabit /2.5G speed options with dual‑color LED indicators. USB3.0 ports backward compatible with USB2.0. Through‑hole DIP mounting design saves PCB space significantly. Integrated magnetics eliminate external magnetic components and simplify hardware design. Suitable for industrial mainboard, embedded system, gateway, NAS storage and communication terminal. Custom solutions are available for bulk orders.
Key Features
Stacked Combo Design: RJ45 + Dual USB3.0
One connector provides ethernet and dual USB3.0 interfaces. Stacked layout reduces PCB footprint and BOM component count.
RJ45 Integrated Transformer & EMI Filter Magnetics
Built‑in magnetic module realizes signal isolation and common‑mode noise suppression, maintains signal integrity for 100M/Gigabit/2.5G transmission, reduces EMI interference without extra magnetic parts.
Dual‑color LED Status Indicator for RJ45
Green‑yellow LED shows link and activity status for easy debugging. LED light color can be customized.
Integrated Full Metal Shield Housing
Monolithic metal shell shields both RJ45 and USB ports against electromagnetic noise, delivers reliable performance under industrial conditions.
DIP Through‑hole Soldering Design
Standard DIP pin layout compatible with wave soldering. Secure positioning for mass‑volume manufacturing.
Premium Gold‑plated Contacts
Gold‑plated copper contacts for RJ45 (3U‑30U optional); gold‑plated copper‑alloy contacts for USB3.0. Anti‑oxidation and long insertion life for stable signal performance.
Multi‑speed Option & Compliance
Multiple RJ45 speed grade:100M / Gigabit / 2.5G. Compliant with IEEE802.3 & USB3.0 specification. 2250VDC hi‑pot rating, RoHS compliant, withstand up to 265℃ soldering temperature.
Typical Applications
Industrial control mainboard, embedded hardware, IOT gateway, network switch, NAS storage device, communication module, industrial terminal equipment.
Custom Service
‑ RJ45 speed option:100M / Gigabit /2.5G
‑ Custom LED indicator color
‑ Multiple gold‑plating thickness options:3U,6U,15U,30U
‑ Optional shield spring finger
‑ Laser marking for part number / logo
‑ Adjustable USB port quantity
‑ Pin‑to‑pin compatible replacement parts
